Description

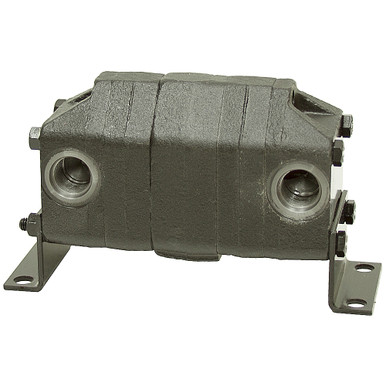

50:50 ROTARY FLOW DIVIDER
Brand new, MTE 200 series model P207R-5466. Hydraulic gear type rotary flow dividers. Accurately divide flow from one source into two or more equal proportionate flows. Relief valves do not limit system pressure, they only limit differential pressure from outlets to inlet.
SPECIFICATIONS
- Flow Division 50:50
- Displacement per Section 0.323 cu. in. /rev.
- Input Flow
Minimum Input 5.59 GPM
Maximum Input 12.58 GPM - Output Flow per Section
Minimum Output 2.797 GPM
Maximum Output 6.292 GPM - Pressure
Maximum Input 3000 PSI
Maximum Output 3500 PSI - Factory Set Differential PSI Between Sections 750 PSI
- Relief Valves Adj. Range 500 – 1000 PSI
- Inlet Port SAE 10
- Outlet Port SAE 10
- Mount Base four bolt on 6.63″ x 2″
- Size 7.38″ x 3.94″ x 4.66″
- Shpg. 13 lbs.
