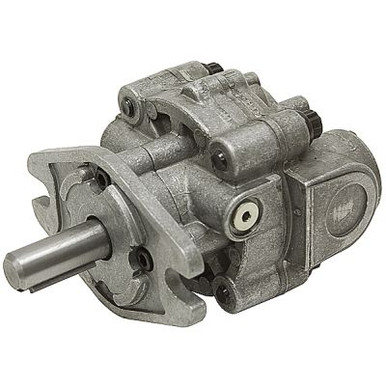

0.580 cu in Hydraulic Motor Parker MGG20025-BA1A3

Description

HYDRAULIC MOTOR
Brand new. PARKER model MGG20025-BA1A3. Hydraulic motor for agricultural, commercial applications. Geroter design with heavy duty bearings, aluminum case, reversible, Buna-N seals.
(Click here to see the same motor with side ports)

SPECIFICATIONS

• Brand Parker
• Model Number MGG20025-BA1A3
• Displacement 0.58 cu. in./rev.
• Pressure
     2000 PSI cont.
     2500 PSI Int.
• Speed
    5000 RPM max
• Flow 2.51 GPM @ 1000 RPM
• Reversible Rotation
• Torque 92 in. lbs./ 1000 PSI
• Mount SAE AA 2 bolt mount w/2″ dia. pilot
• Shaft 0.5625″ dia. x 1.375″ w/keyway
• Ports SAE 10
• Rear Ports
• Size 5.5″ x 3.5″ x 3.38″
• Shpg. 5 lbs.
