Description
Product details
| Gross weight | 9.19 kg |
| Net weight | 9.07 kg |
| EAN | 5702421808238 |
| Gross weight | 9.19 kg |
| Net weight | 9.07 kg |
| EAN | 5702421808238 |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm2] | 80 mm2 |
| Body material | Steel, mat. No 1.0338, zinc plated and yellow chromate |
| AFA PB25 1-5 80cm2 silver | |
| Flow control | No |
| Flow limitation | No |
| Function | Press. relief controller |
| Manufacturer’s name | Danfoss |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Bypass |
| Operating pressure [bar] [Max] | 25 bar |
| Permissible media | Circulation water |
| Pressure controller | Pressure relief controller |
| Pressure nominal [bar] | 25 bar |
| Pressure setting range [bar] [Max] | 5 bar |
| Pressure setting range [bar] [Min] | 1 bar |
| Product group | Actuators – Pressure Flow |
| Setting type | Adjustable |
| Type | AFA |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm2] | 80 mm2 |
| Body material | Steel, mat. No 1.0338, zinc plated and yellow chromate |
| AFA PB25 1-5 80cm2 silver | |
| Flow control | No |
| Flow limitation | No |
| Function | Press. relief controller |
| Manufacturer’s name | Danfoss |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Bypass |
| Operating pressure [bar] [Max] | 25 bar |
| Permissible media | Circulation water |
| Pressure controller | Pressure relief controller |
| Pressure nominal [bar] | 25 bar |
| Pressure setting range [bar] [Max] | 5 bar |
| Pressure setting range [bar] [Min] | 1 bar |
| Product group | Actuators – Pressure Flow |
| Setting type | Adjustable |
| Type | AFA |

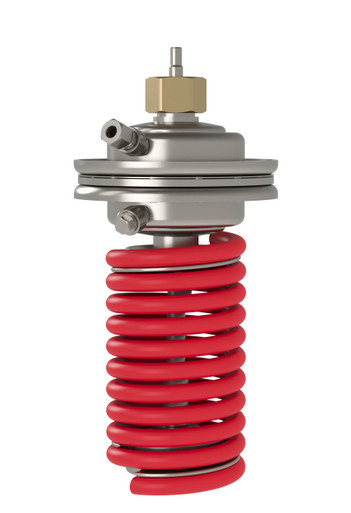

AFA PB25 1-5 80cm2 silver
Product details
| Gross weight | 9.19 kg |
| Net weight | 9.07 kg |
| EAN | 5702421808238 |
| Gross weight | 9.19 kg |
| Net weight | 9.07 kg |
| EAN | 5702421808238 |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm2] | 80 mm2 |
| Body material | Steel, mat. No 1.0338, zinc plated and yellow chromate |
| AFA PB25 1-5 80cm2 silver | |
| Flow control | No |
| Flow limitation | No |
| Function | Press. relief controller |
| Manufacturer’s name | Danfoss |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Bypass |
| Operating pressure [bar] [Max] | 25 bar |
| Permissible media | Circulation water |
| Pressure controller | Pressure relief controller |
| Pressure nominal [bar] | 25 bar |
| Pressure setting range [bar] [Max] | 5 bar |
| Pressure setting range [bar] [Min] | 1 bar |
| Product group | Actuators – Pressure Flow |
| Setting type | Adjustable |
| Type | AFA |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm2] | 80 mm2 |
| Body material | Steel, mat. No 1.0338, zinc plated and yellow chromate |
| AFA PB25 1-5 80cm2 silver | |
| Flow control | No |
| Flow limitation | No |
| Function | Press. relief controller |
| Manufacturer’s name | Danfoss |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Bypass |
| Operating pressure [bar] [Max] | 25 bar |
| Permissible media | Circulation water |
| Pressure controller | Pressure relief controller |
| Pressure nominal [bar] | 25 bar |
| Pressure setting range [bar] [Max] | 5 bar |
| Pressure setting range [bar] [Min] | 1 bar |
| Product group | Actuators – Pressure Flow |
| Setting type | Adjustable |
| Type | AFA |
