Description
Product details
| Gross weight |
51.5 kg |
| Net weight |
48.25 kg |
| Gross weight |
51.5 kg |
| Net weight |
48.25 kg |
| EAN |
5702421558591 |
| Connection types |
Flange |
|

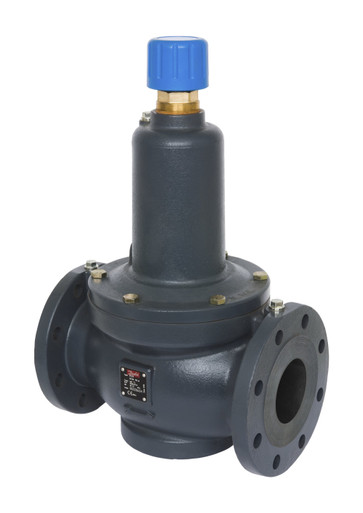

ASV-PV DN 80, 35-75 kPa, automatic balancing valve |
| Differential pressure over the valve [kPa] [Max] |
250 kPa |
| Differential pressure setting [kPa] [Max] |
75 kPa |
| Differential pressure setting [kPa] [Min] |
35 kPa |
| Factory setting [kPa] |
60 kPa |
| Impulse tube length [m] |
2.5 m |
| Kvs values [m³/h] |
63 m3/h |
| Media temperature [°C] [Max] |
120 °C |
| Media temperature [°C] [Min] |
-20 °C |
| Mounting position |
Return pipe |
| Pressure class |
PN 16 |
| Product group |
Automatic balancing |
| Product name |
ASV-PV DN 80, 35-75 kPa |
| Shut-off function |
Yes |
| Type |
ASV-PV 3G |
| Valve body material |
Grey cast iron (EN-GJL-250) |
| Valve size |
DN 80 |
| Connection types |
Flange |
|
ASV-PV DN 80, 35-75 kPa, automatic balancing valve |
| Differential pressure over the valve [kPa] [Max] |
250 kPa |
| Differential pressure setting [kPa] [Max] |
75 kPa |
| Differential pressure setting [kPa] [Min] |
35 kPa |
| Factory setting [kPa] |
60 kPa |
| Impulse tube length [m] |
2.5 m |
| Kvs values [m³/h] |
63 m3/h |
| Media temperature [°C] [Max] |
120 °C |
| Media temperature [°C] [Min] |
-20 °C |
| Mounting position |
Return pipe |
| Pressure class |
PN 16 |
| Product group |
Automatic balancing |
| Product name |
ASV-PV DN 80, 35-75 kPa |
| Shut-off function |
Yes |
| Type |
ASV-PV 3G |
| Valve body material |
Grey cast iron (EN-GJL-250) |
| Valve size |
DN 80 |
Product name: ASV-PV DN 80, 35-75 kPa
Product details
| Gross weight |
51.5 kg |
| Net weight |
48.25 kg |
| Gross weight |
51.5 kg |
| Net weight |
48.25 kg |
| EAN |
5702421558591 |
| Connection types |
Flange |
|
ASV-PV DN 80, 35-75 kPa, automatic balancing valve |
| Differential pressure over the valve [kPa] [Max] |
250 kPa |
| Differential pressure setting [kPa] [Max] |
75 kPa |
| Differential pressure setting [kPa] [Min] |
35 kPa |
| Factory setting [kPa] |
60 kPa |
| Impulse tube length [m] |
2.5 m |
| Kvs values [m³/h] |
63 m3/h |
| Media temperature [°C] [Max] |
120 °C |
| Media temperature [°C] [Min] |
-20 °C |
| Mounting position |
Return pipe |
| Pressure class |
PN 16 |
| Product group |
Automatic balancing |
| Product name |
ASV-PV DN 80, 35-75 kPa |
| Shut-off function |
Yes |
| Type |
ASV-PV 3G |
| Valve body material |
Grey cast iron (EN-GJL-250) |
| Valve size |
DN 80 |
| Connection types |
Flange |
|
ASV-PV DN 80, 35-75 kPa, automatic balancing valve |
| Differential pressure over the valve [kPa] [Max] |
250 kPa |
| Differential pressure setting [kPa] [Max] |
75 kPa |
| Differential pressure setting [kPa] [Min] |
35 kPa |
| Factory setting [kPa] |
60 kPa |
| Impulse tube length [m] |
2.5 m |
| Kvs values [m³/h] |
63 m3/h |
| Media temperature [°C] [Max] |
120 °C |
| Media temperature [°C] [Min] |
-20 °C |
| Mounting position |
Return pipe |
| Pressure class |
PN 16 |
| Product group |
Automatic balancing |
| Product name |
ASV-PV DN 80, 35-75 kPa |
| Shut-off function |
Yes |
| Type |
ASV-PV 3G |
| Valve body material |
Grey cast iron (EN-GJL-250) |
| Valve size |
DN 80 |
