Description
Product details
| Gross weight |
0.15 kg |
| Net weight |
0.15 kg |
| Gross weight |
0.15 kg |
| Net weight |
0.15 kg |
| EAN |
5702420036304 |
| Connection size in |
Rp 3/8 |
| Connection size out |
R 3/8 |
| Differential pressure range [bar] [Max] |
0.6 bar |
| Dimension |
10 |
| Dimension standard |
S |
| Flow temperature [°C] [Max] |
120 °C |
| Kv measuring range |
0.016 – 0.30 |
| Kv value at setting 1 [m³/h] |
0.016 m3/h |
| Kv value at setting 2 [m³/h] |
0.025 m3/h |
| Kv value at setting 3 [m³/h] |
0.035 m3/h |
| Kv value at setting N [m³/h] |
0.3 m3/h |
| Kvs values [m³/h] |
0.32 m3/h |
| Presetting |
yes |
| Product group |
Radiator Valves |
| Quantity per packing format |
90 pc |
| Test pressure [bar] |
16 bar |
| Type |
RA-U (Low flow valves) |
| Working pressure [bar] [Max] |
10 bar |
| Connection size in |
Rp 3/8 |
| Connection size out |
R 3/8 |
| Differential pressure range [bar] [Max] |
0.6 bar |
| Dimension |
10 |
| Dimension standard |
S |
| Flow temperature [°C] [Max] |
120 °C |
| Kv measuring range |
0.016 – 0.30 |
| Kv value at setting 1 [m³/h] |
0.016 m3/h |
| Kv value at setting 2 [m³/h] |
0.025 m3/h |
| Kv value at setting 3 [m³/h] |
0.035 m3/h |
| Kv value at setting N [m³/h] |
0.3 m3/h |
| Kvs values [m³/h] |
0.32 m3/h |
| Presetting |
yes |
| Product group |
Radiator Valves |
| Quantity per packing format |
90 pc |
| Test pressure [bar] |
16 bar |
| Type |
RA-U (Low flow valves) |
| Working pressure [bar] [Max] |
10 bar |

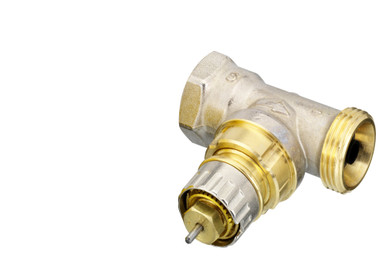

RA-U valve with lock of presetting
