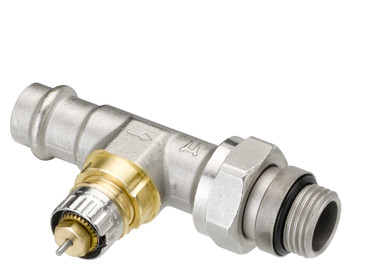

013G3238 Danfoss RA-N (Normal flow valves)

013G3238 Danfoss RA-N (Normal flow valves)

Original price was: $37.08.Current price is: $11.12.

SKU: 013G3238 Category: Tag:

Description

Product details

Gross weight 0.27 kg
Net weight 0.27 kg
EAN 5702420091730
Gross weight 0.27 kg
Net weight 0.27 kg
EAN 5702420091730



Connection size in 15 mm
Connection size out R 1/2
Differential pressure range [bar] [Max] 0.6 bar
Dimension 15
Dimension standard D
Flow temperature [°C] [Max] 120 °C
Kv measuring range 0.04 – 0.7
Kv value at setting 1 [m³/h] 0.04 m3/h
Kv value at setting 2 [m³/h] 0.09 m3/h
Kv value at setting 3 [m³/h] 0.15 m3/h
Kv value at setting 4 [m³/h] 0.22 m3/h
Kv value at setting 5 [m³/h] 0.28 m3/h
Kv value at setting 6 [m³/h] 0.33 m3/h
Kv value at setting 7 [m³/h] 0.36 m3/h
Kv value at setting N [m³/h] 0.43 m3/h
Kvs values [m³/h] 0.9 m3/h
Presetting yes
Product group Radiator Valves
Quantity per packing format 60 pc
Test pressure [bar] 16 bar
Type RA-N (Normal flow valves)
Working pressure [bar] [Max] 10 bar
Connection size in 15 mm
Connection size out R 1/2
Differential pressure range [bar] [Max] 0.6 bar
Dimension 15
Dimension standard D
Flow temperature [°C] [Max] 120 °C
Kv measuring range 0.04 – 0.7
Kv value at setting 1 [m³/h] 0.04 m3/h
Kv value at setting 2 [m³/h] 0.09 m3/h
Kv value at setting 3 [m³/h] 0.15 m3/h
Kv value at setting 4 [m³/h] 0.22 m3/h
Kv value at setting 5 [m³/h] 0.28 m3/h
Kv value at setting 6 [m³/h] 0.33 m3/h
Kv value at setting 7 [m³/h] 0.36 m3/h
Kv value at setting N [m³/h] 0.43 m3/h
Kvs values [m³/h] 0.9 m3/h
Presetting yes
Product group Radiator Valves
Quantity per packing format 60 pc
Test pressure [bar] 16 bar
Type RA-N (Normal flow valves)
Working pressure [bar] [Max] 10 bar

RA-N 15 S, press-fit, sealing

Product details

Gross weight 0.27 kg
Net weight 0.27 kg
EAN 5702420091730
Gross weight 0.27 kg
Net weight 0.27 kg
EAN 5702420091730



Connection size in 15 mm
Connection size out R 1/2
Differential pressure range [bar] [Max] 0.6 bar
Dimension 15
Dimension standard D
Flow temperature [°C] [Max] 120 °C
Kv measuring range 0.04 – 0.7
Kv value at setting 1 [m³/h] 0.04 m3/h
Kv value at setting 2 [m³/h] 0.09 m3/h
Kv value at setting 3 [m³/h] 0.15 m3/h
Kv value at setting 4 [m³/h] 0.22 m3/h
Kv value at setting 5 [m³/h] 0.28 m3/h
Kv value at setting 6 [m³/h] 0.33 m3/h
Kv value at setting 7 [m³/h] 0.36 m3/h
Kv value at setting N [m³/h] 0.43 m3/h
Kvs values [m³/h] 0.9 m3/h
Presetting yes
Product group Radiator Valves
Quantity per packing format 60 pc
Test pressure [bar] 16 bar
Type RA-N (Normal flow valves)
Working pressure [bar] [Max] 10 bar
Connection size in 15 mm
Connection size out R 1/2
Differential pressure range [bar] [Max] 0.6 bar
Dimension 15
Dimension standard D
Flow temperature [°C] [Max] 120 °C
Kv measuring range 0.04 – 0.7
Kv value at setting 1 [m³/h] 0.04 m3/h
Kv value at setting 2 [m³/h] 0.09 m3/h
Kv value at setting 3 [m³/h] 0.15 m3/h
Kv value at setting 4 [m³/h] 0.22 m3/h
Kv value at setting 5 [m³/h] 0.28 m3/h
Kv value at setting 6 [m³/h] 0.33 m3/h
Kv value at setting 7 [m³/h] 0.36 m3/h
Kv value at setting N [m³/h] 0.43 m3/h
Kvs values [m³/h] 0.9 m3/h
Presetting yes
Product group Radiator Valves
Quantity per packing format 60 pc
Test pressure [bar] 16 bar
Type RA-N (Normal flow valves)
Working pressure [bar] [Max] 10 bar
