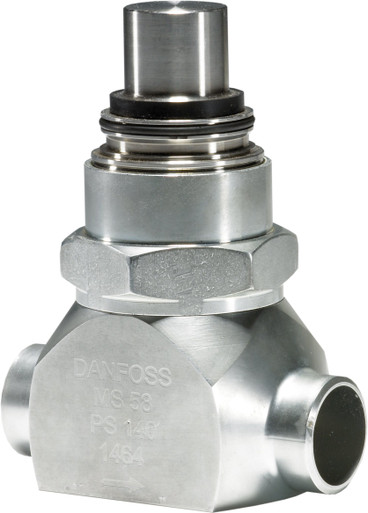

027H1084 Danfoss Motor operated valve, ICMTS 20 A33

027H1084 Danfoss Motor operated valve, ICMTS 20 A33

Original price was: $2,960.96.Current price is: $592.19.

SKU: 027H1084 Category: Tag:

Description

Product details

Gross weight 2.43 kg
Net weight 0 kg
EAN 5702428237222
Gross weight 2.43 kg
Net weight 0 kg
EAN 5702428237222



Application area Transcritical CO2 systems
Body material Steel
Category Art. 3, par. 3
Compatible Danfoss controllers EKC 326A
Connection material Steel
Connection standard EN 10220
Cv value [gal/min] 0.23 gal/min
Direction Straightway
Flow direction indicator Embossed 1-way arrow
Fluid Group I
Inlet connection size [in] 1 in
Inlet connection size [mm] 25 mm
Inlet connection type Butt weld
Kv value [m³/h] 0.2 m3/h
Manual operation option Via ICAD setting
Via Multifunction tool
Max. Working Pressure [bar] 140 bar
Max. Working Pressure [psig] 2030 psig
MaxOPD [bar] 90 bar
MaxOPD [psig] 1305 psig
Open/close time [s] 3 ‘
Outlet connection size [in] 1 in
Outlet connection size [mm] 25 mm
Outlet connection type Butt weld
Packing format Single pack
Parts Program name ICMTS
Product accessories ICAD accessories
ICM / ICS / ICLX accessories
Product description High press. exp. motor valve
Product group Expansion valves
Product name Motor operated valve
Quantity per packing format 1 pc
Refrigerants R744
Serviceable ICMTS spare parts
Temperature range [°C] [Max] 120 °C
Temperature range [°C] [Min] -60 °C
Temperature range [°F] [Max] 248 °F
Temperature range [°F] [Min] -76 °F
Type ICMTS 20 A33
Valve operation DIRECT
Application area Transcritical CO2 systems
Body material Steel
Category Art. 3, par. 3
Compatible Danfoss controllers EKC 326A
Connection material Steel
Connection standard EN 10220
Cv value [gal/min] 0.23 gal/min
Direction Straightway
Flow direction indicator Embossed 1-way arrow
Fluid Group I
Inlet connection size [in] 1 in
Inlet connection size [mm] 25 mm
Inlet connection type Butt weld
Kv value [m³/h] 0.2 m3/h
Manual operation option Via ICAD setting
Via Multifunction tool
Max. Working Pressure [bar] 140 bar
Max. Working Pressure [psig] 2030 psig
MaxOPD [bar] 90 bar
MaxOPD [psig] 1305 psig
Open/close time [s] 3 ‘
Outlet connection size [in] 1 in
Outlet connection size [mm] 25 mm
Outlet connection type Butt weld
Packing format Single pack
Parts Program name ICMTS
Product accessories ICAD accessories
ICM / ICS / ICLX accessories
Product description High press. exp. motor valve
Product group Expansion valves
Product name Motor operated valve
Quantity per packing format 1 pc
Refrigerants R744
Serviceable ICMTS spare parts
Temperature range [°C] [Max] 120 °C
Temperature range [°C] [Min] -60 °C
Temperature range [°F] [Max] 248 °F
Temperature range [°F] [Min] -76 °F
Type ICMTS 20 A33
Valve operation DIRECT

Product name: Motor operated valve, Type: ICMTS 20 A33, Refrigerants: R744, Inlet connection size [mm]: 25.0, Inlet connection type: Butt weld, Outlet connection size [mm]: 25.0, Outlet connection type: Butt weld

Product details

Gross weight 2.43 kg
Net weight 0 kg
EAN 5702428237222
Gross weight 2.43 kg
Net weight 0 kg
EAN 5702428237222



Application area Transcritical CO2 systems
Body material Steel
Category Art. 3, par. 3
Compatible Danfoss controllers EKC 326A
Connection material Steel
Connection standard EN 10220
Cv value [gal/min] 0.23 gal/min
Direction Straightway
Flow direction indicator Embossed 1-way arrow
Fluid Group I
Inlet connection size [in] 1 in
Inlet connection size [mm] 25 mm
Inlet connection type Butt weld
Kv value [m³/h] 0.2 m3/h
Manual operation option Via ICAD setting
Via Multifunction tool
Max. Working Pressure [bar] 140 bar
Max. Working Pressure [psig] 2030 psig
MaxOPD [bar] 90 bar
MaxOPD [psig] 1305 psig
Open/close time [s] 3 ‘
Outlet connection size [in] 1 in
Outlet connection size [mm] 25 mm
Outlet connection type Butt weld
Packing format Single pack
Parts Program name ICMTS
Product accessories ICAD accessories
ICM / ICS / ICLX accessories
Product description High press. exp. motor valve
Product group Expansion valves
Product name Motor operated valve
Quantity per packing format 1 pc
Refrigerants R744
Serviceable ICMTS spare parts
Temperature range [°C] [Max] 120 °C
Temperature range [°C] [Min] -60 °C
Temperature range [°F] [Max] 248 °F
Temperature range [°F] [Min] -76 °F
Type ICMTS 20 A33
Valve operation DIRECT
Application area Transcritical CO2 systems
Body material Steel
Category Art. 3, par. 3
Compatible Danfoss controllers EKC 326A
Connection material Steel
Connection standard EN 10220
Cv value [gal/min] 0.23 gal/min
Direction Straightway
Flow direction indicator Embossed 1-way arrow
Fluid Group I
Inlet connection size [in] 1 in
Inlet connection size [mm] 25 mm
Inlet connection type Butt weld
Kv value [m³/h] 0.2 m3/h
Manual operation option Via ICAD setting
Via Multifunction tool
Max. Working Pressure [bar] 140 bar
Max. Working Pressure [psig] 2030 psig
MaxOPD [bar] 90 bar
MaxOPD [psig] 1305 psig
Open/close time [s] 3 ‘
Outlet connection size [in] 1 in
Outlet connection size [mm] 25 mm
Outlet connection type Butt weld
Packing format Single pack
Parts Program name ICMTS
Product accessories ICAD accessories
ICM / ICS / ICLX accessories
Product description High press. exp. motor valve
Product group Expansion valves
Product name Motor operated valve
Quantity per packing format 1 pc
Refrigerants R744
Serviceable ICMTS spare parts
Temperature range [°C] [Max] 120 °C
Temperature range [°C] [Min] -60 °C
Temperature range [°F] [Max] 248 °F
Temperature range [°F] [Min] -76 °F
Type ICMTS 20 A33
Valve operation DIRECT
