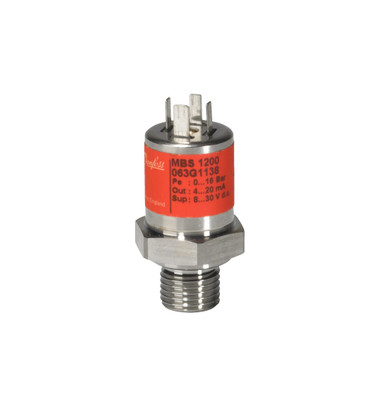

063G1138 Danfoss Pressure transmitter, MBS 1200

063G1138 Danfoss Pressure transmitter, MBS 1200

Original price was: $275.17.Current price is: $68.79.

SKU: 063G1138 Category: Tag:

Description

Product details

Gross weight 0.06 kg
Net weight 0.06 kg
EAN 5702423233854
Gross weight 0.06 kg
Net weight 0.06 kg
EAN 5702423233854



+ supply Pin 2
– common Pin 4
Accuracy, typical +/- FS [%] 0.5 %
Ambient temperature range [°C] [Max] 100 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 212 °F
Ambient temperature range [°F] [Min] -40 °F
Burst pressure [bar] 640 bar
Burst pressure [psig] 9200 psig
Compensated temp. range [°C] [Max] 125 °C
Compensated temp. range [°C] [Min] -40 °C
Compensated temp. range [°F] [Max] 257 °F
Compensated temp. range [°F] [Min] -40 °F
Electrical conn. comments Sn coated
Electrical conn. Male/Female Male
Electrical connection Plug
Electrical connection size 4 pin
Electrical connection standard EN 175301-803-C
Enclosure rating IP IP40
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -40 °F
Output signal Current
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 32 bar
Overload pressure max. [psig] 450 psig
Packing format Multi pack
Pressure connection HEX [mm] 22 mm
Pressure connection notes A
Pressure connection size 1/4
Pressure connection standard DIN 3852-E
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 16 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 232.06 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 48 pc
Response time max. [ms] 1 ms
Specification key MBS 1200-2211-C5GB04
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 8 V
Type MBS 1200
+ supply Pin 2
– common Pin 4
Accuracy, typical +/- FS [%] 0.5 %
Ambient temperature range [°C] [Max] 100 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 212 °F
Ambient temperature range [°F] [Min] -40 °F
Burst pressure [bar] 640 bar
Burst pressure [psig] 9200 psig
Compensated temp. range [°C] [Max] 125 °C
Compensated temp. range [°C] [Min] -40 °C
Compensated temp. range [°F] [Max] 257 °F
Compensated temp. range [°F] [Min] -40 °F
Electrical conn. comments Sn coated
Electrical conn. Male/Female Male
Electrical connection Plug
Electrical connection size 4 pin
Electrical connection standard EN 175301-803-C
Enclosure rating IP IP40
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -40 °F
Output signal Current
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 32 bar
Overload pressure max. [psig] 450 psig
Packing format Multi pack
Pressure connection HEX [mm] 22 mm
Pressure connection notes A
Pressure connection size 1/4
Pressure connection standard DIN 3852-E
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 16 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 232.06 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 48 pc
Response time max. [ms] 1 ms
Specification key MBS 1200-2211-C5GB04
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 8 V
Type MBS 1200

Product name: Pressure transmitter, Type: MBS 1200, Pressure range [psi]: 0.00 – 232.06, Pressure range [bar]: 0.00 – 16.00, Pressure connection size: 1/4, Pressure connection type: G, Output signal [mA]: 4 – 20, Electrical connection size: 4 pin, Electrical connection: Plug

Product details

Gross weight 0.06 kg
Net weight 0.06 kg
EAN 5702423233854
Gross weight 0.06 kg
Net weight 0.06 kg
EAN 5702423233854



+ supply Pin 2
– common Pin 4
Accuracy, typical +/- FS [%] 0.5 %
Ambient temperature range [°C] [Max] 100 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 212 °F
Ambient temperature range [°F] [Min] -40 °F
Burst pressure [bar] 640 bar
Burst pressure [psig] 9200 psig
Compensated temp. range [°C] [Max] 125 °C
Compensated temp. range [°C] [Min] -40 °C
Compensated temp. range [°F] [Max] 257 °F
Compensated temp. range [°F] [Min] -40 °F
Electrical conn. comments Sn coated
Electrical conn. Male/Female Male
Electrical connection Plug
Electrical connection size 4 pin
Electrical connection standard EN 175301-803-C
Enclosure rating IP IP40
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -40 °F
Output signal Current
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 32 bar
Overload pressure max. [psig] 450 psig
Packing format Multi pack
Pressure connection HEX [mm] 22 mm
Pressure connection notes A
Pressure connection size 1/4
Pressure connection standard DIN 3852-E
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 16 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 232.06 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 48 pc
Response time max. [ms] 1 ms
Specification key MBS 1200-2211-C5GB04
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 8 V
Type MBS 1200
+ supply Pin 2
– common Pin 4
Accuracy, typical +/- FS [%] 0.5 %
Ambient temperature range [°C] [Max] 100 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 212 °F
Ambient temperature range [°F] [Min] -40 °F
Burst pressure [bar] 640 bar
Burst pressure [psig] 9200 psig
Compensated temp. range [°C] [Max] 125 °C
Compensated temp. range [°C] [Min] -40 °C
Compensated temp. range [°F] [Max] 257 °F
Compensated temp. range [°F] [Min] -40 °F
Electrical conn. comments Sn coated
Electrical conn. Male/Female Male
Electrical connection Plug
Electrical connection size 4 pin
Electrical connection standard EN 175301-803-C
Enclosure rating IP IP40
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -40 °F
Output signal Current
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 32 bar
Overload pressure max. [psig] 450 psig
Packing format Multi pack
Pressure connection HEX [mm] 22 mm
Pressure connection notes A
Pressure connection size 1/4
Pressure connection standard DIN 3852-E
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 16 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 232.06 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 48 pc
Response time max. [ms] 1 ms
Specification key MBS 1200-2211-C5GB04
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 8 V
Type MBS 1200
