Sale!

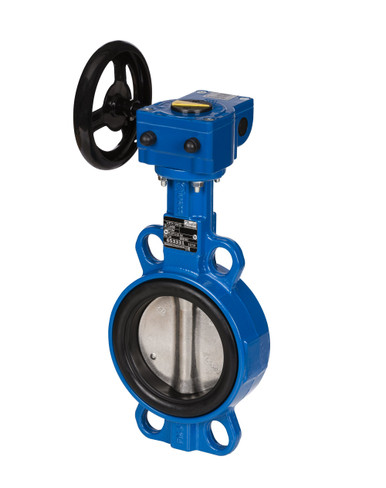

065B7445 Danfoss VFY-WG

065B7445 Danfoss VFY-WG

Original price was: $766.12.Current price is: $153.22.

SKU: 065B7445 Category: Tag:

Description

Product details

Gross weight 8.39 kg
Net weight 8.49 kg
EAN 5710104062686
Gross weight 8.39 kg
Net weight 8.49 kg
EAN 5710104062686



Ambient temperature [°C] [Max] 120 °C
Ambient temperature [°C] [Min] -10 °C
Application Heating and cooling
Approval standard PED 97/23/CE, EN 12266-1, Rate A
Body material Cast iron EN GJL 250 (DIN GG25)
Connection types Wafer
VFY-WG PN16 DN150 CI/SS/EPDM
Diameter [mm] 150 mm
Diameter [mm] [Max] 150 mm
Differential pressure range [bar] [Max] 16 bar
Flanges material Cast iron EN GJL 250 (DIN GG25)
Function On/off
Gear flange type F07
Kvs values [m³/h] 1212 m3/h
Leakage rate [% Kvs] Leakage rate A
Length [mm] 56 mm
Manufacturer’s name Danfoss
Media pH [Max] 10
Media pH [Min] 7
Media temperature [°C] [Max] 130 °C
Media temperature [°C] [Min] -10 °C
Medium alternative Glycolic water up to 50%
Medium alternative 2 Drinking water
Mounting orientation except cap down
Number of ports 2
Operating torque [Nm] 115 N-m
Operation type Worm Gear
Permissible media Circulation water
Pressure nominal [bar] 16 bar
Product group Butterfly valves
Rotation angle [°] 90 °
Stem sealing material Nitrile/Viton/Zinc coated S. + PTFE
Storage temperature [°C] [Min] -10 °C
Type VFY-WG
Valve body material Cast iron EN GJL 250 (DIN GG25)
Valve disc material Stainless Steel
Valve liner material EPDM
Valve stem material Stainless steel AISI 420
Valve type Concentric Design
Ambient temperature [°C] [Max] 120 °C
Ambient temperature [°C] [Min] -10 °C
Application Heating and cooling
Approval standard PED 97/23/CE, EN 12266-1, Rate A
Body material Cast iron EN GJL 250 (DIN GG25)
Connection types Wafer
VFY-WG PN16 DN150 CI/SS/EPDM
Diameter [mm] 150 mm
Diameter [mm] [Max] 150 mm
Differential pressure range [bar] [Max] 16 bar
Flanges material Cast iron EN GJL 250 (DIN GG25)
Function On/off
Gear flange type F07
Kvs values [m³/h] 1212 m3/h
Leakage rate [% Kvs] Leakage rate A
Length [mm] 56 mm
Manufacturer’s name Danfoss
Media pH [Max] 10
Media pH [Min] 7
Media temperature [°C] [Max] 130 °C
Media temperature [°C] [Min] -10 °C
Medium alternative Glycolic water up to 50%
Medium alternative 2 Drinking water
Mounting orientation except cap down
Number of ports 2
Operating torque [Nm] 115 N-m
Operation type Worm Gear
Permissible media Circulation water
Pressure nominal [bar] 16 bar
Product group Butterfly valves
Rotation angle [°] 90 °
Stem sealing material Nitrile/Viton/Zinc coated S. + PTFE
Storage temperature [°C] [Min] -10 °C
Type VFY-WG
Valve body material Cast iron EN GJL 250 (DIN GG25)
Valve disc material Stainless Steel
Valve liner material EPDM
Valve stem material Stainless steel AISI 420
Valve type Concentric Design

VFY-WG PN16 DN150 CI/SS/EPDM

Product details

Gross weight 8.39 kg
Net weight 8.49 kg
EAN 5710104062686
Gross weight 8.39 kg
Net weight 8.49 kg
EAN 5710104062686



Ambient temperature [°C] [Max] 120 °C
Ambient temperature [°C] [Min] -10 °C
Application Heating and cooling
Approval standard PED 97/23/CE, EN 12266-1, Rate A
Body material Cast iron EN GJL 250 (DIN GG25)
Connection types Wafer
VFY-WG PN16 DN150 CI/SS/EPDM
Diameter [mm] 150 mm
Diameter [mm] [Max] 150 mm
Differential pressure range [bar] [Max] 16 bar
Flanges material Cast iron EN GJL 250 (DIN GG25)
Function On/off
Gear flange type F07
Kvs values [m³/h] 1212 m3/h
Leakage rate [% Kvs] Leakage rate A
Length [mm] 56 mm
Manufacturer’s name Danfoss
Media pH [Max] 10
Media pH [Min] 7
Media temperature [°C] [Max] 130 °C
Media temperature [°C] [Min] -10 °C
Medium alternative Glycolic water up to 50%
Medium alternative 2 Drinking water
Mounting orientation except cap down
Number of ports 2
Operating torque [Nm] 115 N-m
Operation type Worm Gear
Permissible media Circulation water
Pressure nominal [bar] 16 bar
Product group Butterfly valves
Rotation angle [°] 90 °
Stem sealing material Nitrile/Viton/Zinc coated S. + PTFE
Storage temperature [°C] [Min] -10 °C
Type VFY-WG
Valve body material Cast iron EN GJL 250 (DIN GG25)
Valve disc material Stainless Steel
Valve liner material EPDM
Valve stem material Stainless steel AISI 420
Valve type Concentric Design
Ambient temperature [°C] [Max] 120 °C
Ambient temperature [°C] [Min] -10 °C
Application Heating and cooling
Approval standard PED 97/23/CE, EN 12266-1, Rate A
Body material Cast iron EN GJL 250 (DIN GG25)
Connection types Wafer
VFY-WG PN16 DN150 CI/SS/EPDM
Diameter [mm] 150 mm
Diameter [mm] [Max] 150 mm
Differential pressure range [bar] [Max] 16 bar
Flanges material Cast iron EN GJL 250 (DIN GG25)
Function On/off
Gear flange type F07
Kvs values [m³/h] 1212 m3/h
Leakage rate [% Kvs] Leakage rate A
Length [mm] 56 mm
Manufacturer’s name Danfoss
Media pH [Max] 10
Media pH [Min] 7
Media temperature [°C] [Max] 130 °C
Media temperature [°C] [Min] -10 °C
Medium alternative Glycolic water up to 50%
Medium alternative 2 Drinking water
Mounting orientation except cap down
Number of ports 2
Operating torque [Nm] 115 N-m
Operation type Worm Gear
Permissible media Circulation water
Pressure nominal [bar] 16 bar
Product group Butterfly valves
Rotation angle [°] 90 °
Stem sealing material Nitrile/Viton/Zinc coated S. + PTFE
Storage temperature [°C] [Min] -10 °C
Type VFY-WG
Valve body material Cast iron EN GJL 250 (DIN GG25)
Valve disc material Stainless Steel
Valve liner material EPDM
Valve stem material Stainless steel AISI 420
Valve type Concentric Design
