Sale!

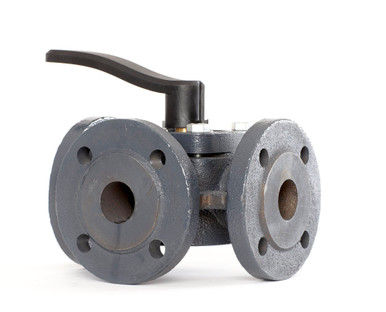

065Z0433 Danfoss HFE 3

065Z0433 Danfoss HFE 3

Original price was: $522.34.Current price is: $104.47.

SKU: 065Z0433 Category: Tag:

Description

Product details

Gross weight 20.8 kg
Net weight 14.7 kg
EAN 5710104033501
Gross weight 20.8 kg
Net weight 14.7 kg
EAN 5710104033501



Application Heating
Application alternative VSP District heating
Closing differential pressure (diverting) [bar] [Max] 0.5 bar
Closing differential pressure (mixing) [bar] [Max] 0.5 bar
Connection size PN 6
Connection types Flange
HFE 3 PN6 65/90 rotary 3-way Flange
Diameter [mm] 65 mm
Flow characteristic S characteristic
Function Pressure relief
Kvs values [m³/h] 90 m3/h
Leakage through port max. [% Kvs] Diverting: 0.5
Mixing: 1.0
Media pH [Max] 10
Media pH [Min] 7
Media temperature [°C] [Max] 110 °C
Media temperature [°C] [Min] 2 °C
Medium alternative Glycolic water up to 50%
Mounting version Flow
Number of ports 3
Operating torque [Nm] 10 N-m
Permissible media Circulation water
Pressure nominal [bar] 6 bar
Product group Motorized control valves
Slide shoe material DZR brass CuZn36Pb2AS (CW 602N)
Spindle material Stainless steel
Stuffing box sealing material EPDM
Type HFE 3
Valve body material Grey cast iron EN-GJL-250 (GG-25)
Valve cone material DZR brass CuZn36Pb2AS (CW 602N)
Application Heating
Application alternative VSP District heating
Closing differential pressure (diverting) [bar] [Max] 0.5 bar
Closing differential pressure (mixing) [bar] [Max] 0.5 bar
Connection size PN 6
Connection types Flange
HFE 3 PN6 65/90 rotary 3-way Flange
Diameter [mm] 65 mm
Flow characteristic S characteristic
Function Pressure relief
Kvs values [m³/h] 90 m3/h
Leakage through port max. [% Kvs] Diverting: 0.5
Mixing: 1.0
Media pH [Max] 10
Media pH [Min] 7
Media temperature [°C] [Max] 110 °C
Media temperature [°C] [Min] 2 °C
Medium alternative Glycolic water up to 50%
Mounting version Flow
Number of ports 3
Operating torque [Nm] 10 N-m
Permissible media Circulation water
Pressure nominal [bar] 6 bar
Product group Motorized control valves
Slide shoe material DZR brass CuZn36Pb2AS (CW 602N)
Spindle material Stainless steel
Stuffing box sealing material EPDM
Type HFE 3
Valve body material Grey cast iron EN-GJL-250 (GG-25)
Valve cone material DZR brass CuZn36Pb2AS (CW 602N)

HFE 3 PN6 65/90 rotary 3-way Flange

Product details

Gross weight 20.8 kg
Net weight 14.7 kg
EAN 5710104033501
Gross weight 20.8 kg
Net weight 14.7 kg
EAN 5710104033501



Application Heating
Application alternative VSP District heating
Closing differential pressure (diverting) [bar] [Max] 0.5 bar
Closing differential pressure (mixing) [bar] [Max] 0.5 bar
Connection size PN 6
Connection types Flange
HFE 3 PN6 65/90 rotary 3-way Flange
Diameter [mm] 65 mm
Flow characteristic S characteristic
Function Pressure relief
Kvs values [m³/h] 90 m3/h
Leakage through port max. [% Kvs] Diverting: 0.5
Mixing: 1.0
Media pH [Max] 10
Media pH [Min] 7
Media temperature [°C] [Max] 110 °C
Media temperature [°C] [Min] 2 °C
Medium alternative Glycolic water up to 50%
Mounting version Flow
Number of ports 3
Operating torque [Nm] 10 N-m
Permissible media Circulation water
Pressure nominal [bar] 6 bar
Product group Motorized control valves
Slide shoe material DZR brass CuZn36Pb2AS (CW 602N)
Spindle material Stainless steel
Stuffing box sealing material EPDM
Type HFE 3
Valve body material Grey cast iron EN-GJL-250 (GG-25)
Valve cone material DZR brass CuZn36Pb2AS (CW 602N)
Application Heating
Application alternative VSP District heating
Closing differential pressure (diverting) [bar] [Max] 0.5 bar
Closing differential pressure (mixing) [bar] [Max] 0.5 bar
Connection size PN 6
Connection types Flange
HFE 3 PN6 65/90 rotary 3-way Flange
Diameter [mm] 65 mm
Flow characteristic S characteristic
Function Pressure relief
Kvs values [m³/h] 90 m3/h
Leakage through port max. [% Kvs] Diverting: 0.5
Mixing: 1.0
Media pH [Max] 10
Media pH [Min] 7
Media temperature [°C] [Max] 110 °C
Media temperature [°C] [Min] 2 °C
Medium alternative Glycolic water up to 50%
Mounting version Flow
Number of ports 3
Operating torque [Nm] 10 N-m
Permissible media Circulation water
Pressure nominal [bar] 6 bar
Product group Motorized control valves
Slide shoe material DZR brass CuZn36Pb2AS (CW 602N)
Spindle material Stainless steel
Stuffing box sealing material EPDM
Type HFE 3
Valve body material Grey cast iron EN-GJL-250 (GG-25)
Valve cone material DZR brass CuZn36Pb2AS (CW 602N)
