Description
Product details
| Gross weight | 10.42 kg |
| Net weight | 9.73 kg |
| EAN | 5702421507599 |
| Gross weight | 10.42 kg |
| Net weight | 9.73 kg |
| EAN | 5702421507599 |
| Actuator speed [s/mm] | 8 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Application | HD HVAC and DH |
| Closing force [N] | 5000 N |
| Control signal type | 3-point |
| AMV 85 230V 8s/mm 40mm 5000N | |
| Frequency [Hz] | 50/60 |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Manufacturer’s name | Danfoss |
| Position feedback | no – potentiometer needed |
| Power consumption [W] | 11 W |
| Product group | Electrical actuators |
| Protection class | II |
| Safety function | 1 |
| Speed type | Standard |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 40 mm |
| Supply voltage range [V] AC | 230 V |
| Turn time [s] | 0 s |
| Type | AMV 85 |
| Actuator speed [s/mm] | 8 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Application | HD HVAC and DH |
| Closing force [N] | 5000 N |
| Control signal type | 3-point |
| AMV 85 230V 8s/mm 40mm 5000N | |
| Frequency [Hz] | 50/60 |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Manufacturer’s name | Danfoss |
| Position feedback | no – potentiometer needed |
| Power consumption [W] | 11 W |
| Product group | Electrical actuators |
| Protection class | II |
| Safety function | 1 |
| Speed type | Standard |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 40 mm |
| Supply voltage range [V] AC | 230 V |
| Turn time [s] | 0 s |
| Type | AMV 85 |

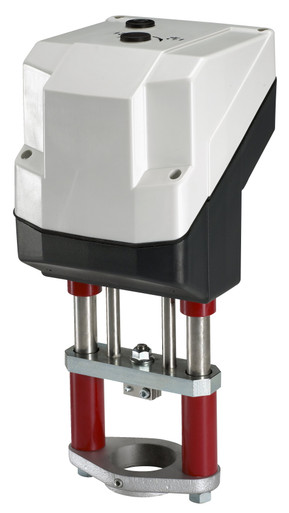

AMV 85230V 8s/mm 40mm 5000N
Product details
| Gross weight | 10.42 kg |
| Net weight | 9.73 kg |
| EAN | 5702421507599 |
| Gross weight | 10.42 kg |
| Net weight | 9.73 kg |
| EAN | 5702421507599 |
| Actuator speed [s/mm] | 8 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Application | HD HVAC and DH |
| Closing force [N] | 5000 N |
| Control signal type | 3-point |
| AMV 85 230V 8s/mm 40mm 5000N | |
| Frequency [Hz] | 50/60 |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Manufacturer’s name | Danfoss |
| Position feedback | no – potentiometer needed |
| Power consumption [W] | 11 W |
| Product group | Electrical actuators |
| Protection class | II |
| Safety function | 1 |
| Speed type | Standard |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 40 mm |
| Supply voltage range [V] AC | 230 V |
| Turn time [s] | 0 s |
| Type | AMV 85 |
| Actuator speed [s/mm] | 8 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Application | HD HVAC and DH |
| Closing force [N] | 5000 N |
| Control signal type | 3-point |
| AMV 85 230V 8s/mm 40mm 5000N | |
| Frequency [Hz] | 50/60 |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Manufacturer’s name | Danfoss |
| Position feedback | no – potentiometer needed |
| Power consumption [W] | 11 W |
| Product group | Electrical actuators |
| Protection class | II |
| Safety function | 1 |
| Speed type | Standard |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 40 mm |
| Supply voltage range [V] AC | 230 V |
| Turn time [s] | 0 s |
| Type | AMV 85 |
