Description
Product details
| Gross weight |
1.54 kg |
| Net weight |
1.48 kg |
| Gross weight |
1.54 kg |
| Net weight |
1.48 kg |
| EAN |
5702421510551 |
| Actuator speed [s/mm] |
15 s/mm |
| Actuator type |
Electrical |
| Ambient temperature [°C] [Max] |
55 °C |
| Ambient temperature [°C] [Min] |
0 °C |
| Application |
District Heating |
| Closing force [N] |
450 N |
| Control signal type |
3-point |
|

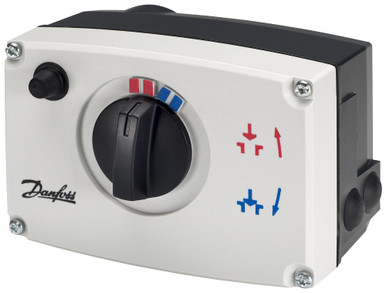

AMV 20 230V 15s/mm 10mm 450N |
| Frequency [Hz] |
50/60 |
| Grade of enclosure |
IP54 |
| Manual operation |
Yes |
| Manufacturer’s name |
Danfoss |
| Position feedback |
no – potentiometer needed |
| Power consumption [W] |
2 W |
| Product group |
Electrical actuators |
| Protection class |
II |
| Safety function |
0 |
| Speed type |
Standard |
| Spring down (return) |
No |
| Spring up |
No |
| Storage temperature [°C] [Max] |
70 °C |
| Storage temperature [°C] [Min] |
-40 °C |
| Stroke [mm] |
10 mm |
| Supply voltage range [V] AC |
230 V |
| Turn time [s] |
0 s |
| Type |
AMV 20 |
| Actuator speed [s/mm] |
15 s/mm |
| Actuator type |
Electrical |
| Ambient temperature [°C] [Max] |
55 °C |
| Ambient temperature [°C] [Min] |
0 °C |
| Application |
District Heating |
| Closing force [N] |
450 N |
| Control signal type |
3-point |
|
AMV 20 230V 15s/mm 10mm 450N |
| Frequency [Hz] |
50/60 |
| Grade of enclosure |
IP54 |
| Manual operation |
Yes |
| Manufacturer’s name |
Danfoss |
| Position feedback |
no – potentiometer needed |
| Power consumption [W] |
2 W |
| Product group |
Electrical actuators |
| Protection class |
II |
| Safety function |
0 |
| Speed type |
Standard |
| Spring down (return) |
No |
| Spring up |
No |
| Storage temperature [°C] [Max] |
70 °C |
| Storage temperature [°C] [Min] |
-40 °C |
| Stroke [mm] |
10 mm |
| Supply voltage range [V] AC |
230 V |
| Turn time [s] |
0 s |
| Type |
AMV 20 |
AMV 20230V 15s/mm 10mm 450N
