Description
Product details
| Gross weight | 1.75 kg |
| Net weight | 1.74 kg |
| EAN | 5702421513071 |
| Gross weight | 1.75 kg |
| Net weight | 1.74 kg |
| EAN | 5702421513071 |
| Actuator speed [s/mm] | 3 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Application | HVAC |
| Closing force [N] | 600 N |
| Control input signal Y [mA] | 0(4) – 20 mA |
| Control input signal Y [mA], impedance [Ohm] | 500 Ohm |
| Control input signal Y [V] | 0(2) – 10 V |
| Control input signal Y [V], impedance [kOhm] | 24 kOhm |
| Control signal type | Modulating/3-point |
| AME 35 24V 3s/mm 15mm 600N | |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Manufacturer’s name | Danfoss |
| Position feedback | yes |
| Power consumption [W] | 9 W |
| Product group | Electrical actuators |
| Protection class | II |
| Safety function | 1 |
| Speed type | Fast |
| Spring down (return) | Yes |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 15 mm |
| Supply voltage range [V] AC | 24 V |
| Turn time [s] | 0 s |
| Type | AME 35 |
| Actuator speed [s/mm] | 3 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Application | HVAC |
| Closing force [N] | 600 N |
| Control input signal Y [mA] | 0(4) – 20 mA |
| Control input signal Y [mA], impedance [Ohm] | 500 Ohm |
| Control input signal Y [V] | 0(2) – 10 V |
| Control input signal Y [V], impedance [kOhm] | 24 kOhm |
| Control signal type | Modulating/3-point |
| AME 35 24V 3s/mm 15mm 600N | |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Manufacturer’s name | Danfoss |
| Position feedback | yes |
| Power consumption [W] | 9 W |
| Product group | Electrical actuators |
| Protection class | II |
| Safety function | 1 |
| Speed type | Fast |
| Spring down (return) | Yes |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 15 mm |
| Supply voltage range [V] AC | 24 V |
| Turn time [s] | 0 s |
| Type | AME 35 |

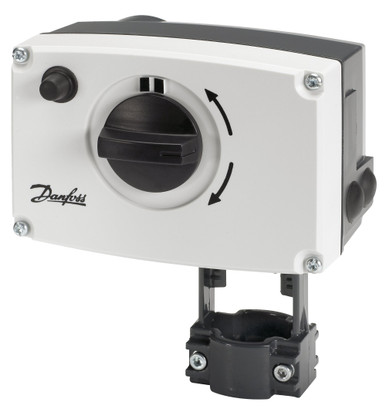

AME 3524V 3s/mm 15mm 600N
Product details
| Gross weight | 1.75 kg |
| Net weight | 1.74 kg |
| EAN | 5702421513071 |
| Gross weight | 1.75 kg |
| Net weight | 1.74 kg |
| EAN | 5702421513071 |
| Actuator speed [s/mm] | 3 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Application | HVAC |
| Closing force [N] | 600 N |
| Control input signal Y [mA] | 0(4) – 20 mA |
| Control input signal Y [mA], impedance [Ohm] | 500 Ohm |
| Control input signal Y [V] | 0(2) – 10 V |
| Control input signal Y [V], impedance [kOhm] | 24 kOhm |
| Control signal type | Modulating/3-point |
| AME 35 24V 3s/mm 15mm 600N | |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Manufacturer’s name | Danfoss |
| Position feedback | yes |
| Power consumption [W] | 9 W |
| Product group | Electrical actuators |
| Protection class | II |
| Safety function | 1 |
| Speed type | Fast |
| Spring down (return) | Yes |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 15 mm |
| Supply voltage range [V] AC | 24 V |
| Turn time [s] | 0 s |
| Type | AME 35 |
| Actuator speed [s/mm] | 3 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Application | HVAC |
| Closing force [N] | 600 N |
| Control input signal Y [mA] | 0(4) – 20 mA |
| Control input signal Y [mA], impedance [Ohm] | 500 Ohm |
| Control input signal Y [V] | 0(2) – 10 V |
| Control input signal Y [V], impedance [kOhm] | 24 kOhm |
| Control signal type | Modulating/3-point |
| AME 35 24V 3s/mm 15mm 600N | |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Manufacturer’s name | Danfoss |
| Position feedback | yes |
| Power consumption [W] | 9 W |
| Product group | Electrical actuators |
| Protection class | II |
| Safety function | 1 |
| Speed type | Fast |
| Spring down (return) | Yes |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 15 mm |
| Supply voltage range [V] AC | 24 V |
| Turn time [s] | 0 s |
| Type | AME 35 |
