Description
Product details
| Gross weight |
1.1 kg |
| Net weight |
0.93 kg |
| Gross weight |
1.1 kg |
| Net weight |
0.93 kg |
| EAN |
5710104079844 |
| Application |
Domestic and commercial central heating |
| Application alternative VSP |
Solar energy plants |
| Closing differential pressure (diverting) [bar] [Max] |
6 bar |
| Closing differential pressure (mixing) [bar] [Max] |
6 bar |
| Connection size |
Rp 3/4 |
| Connection types |
Internal thread |
|

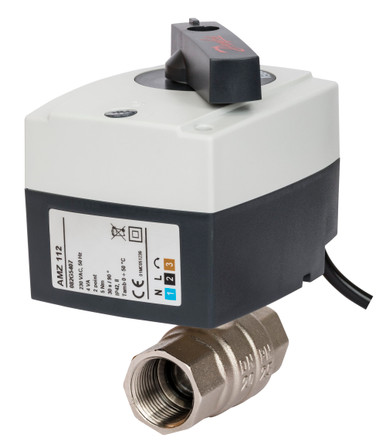

AMZ 112 ON/OFF 2-w int th 230V DN20 |
| Diameter [mm] |
20 mm |
| Kvs values [m³/h] |
28 m3/h |
| Manufacturer’s name |
Danfoss |
| Media temperature [°C] [Max] |
110 °C |
| Media temperature [°C] [Min] |
2 °C |
| Medium alternative |
Drinking water |
| Medium alternative 2 |
Glycolic water up to 50% |
| Mounting version |
Free |
| Number of ports |
2 |
| Operating torque [Nm] |
5 N-m |
| Permissible media |
Circulation water |
| Pressure nominal [bar] |
40 bar |
| Product group |
Motorized control valves |
| Spindle position |
None |
| Type |
AMZ 112 |
| Valve ball material |
CW 614 N UNI EN 12164 |
| Valve body material |
CW 617 N UNI EN 12165 |
| Valve stem material |
CW 614 N UNI EN 12164 |
| Application |
Domestic and commercial central heating |
| Application alternative VSP |
Solar energy plants |
| Closing differential pressure (diverting) [bar] [Max] |
6 bar |
| Closing differential pressure (mixing) [bar] [Max] |
6 bar |
| Connection size |
Rp 3/4 |
| Connection types |
Internal thread |
|
AMZ 112 ON/OFF 2-w int th 230V DN20 |
| Diameter [mm] |
20 mm |
| Kvs values [m³/h] |
28 m3/h |
| Manufacturer’s name |
Danfoss |
| Media temperature [°C] [Max] |
110 °C |
| Media temperature [°C] [Min] |
2 °C |
| Medium alternative |
Drinking water |
| Medium alternative 2 |
Glycolic water up to 50% |
| Mounting version |
Free |
| Number of ports |
2 |
| Operating torque [Nm] |
5 N-m |
| Permissible media |
Circulation water |
| Pressure nominal [bar] |
40 bar |
| Product group |
Motorized control valves |
| Spindle position |
None |
| Type |
AMZ 112 |
| Valve ball material |
CW 614 N UNI EN 12164 |
| Valve body material |
CW 617 N UNI EN 12165 |
| Valve stem material |
CW 614 N UNI EN 12164 |
AMZ 112 ON/OFF 2-w int th 230V DN20
Product details
| Gross weight |
1.1 kg |
| Net weight |
0.93 kg |
| Gross weight |
1.1 kg |
| Net weight |
0.93 kg |
| EAN |
5710104079844 |
| Application |
Domestic and commercial central heating |
| Application alternative VSP |
Solar energy plants |
| Closing differential pressure (diverting) [bar] [Max] |
6 bar |
| Closing differential pressure (mixing) [bar] [Max] |
6 bar |
| Connection size |
Rp 3/4 |
| Connection types |
Internal thread |
|
AMZ 112 ON/OFF 2-w int th 230V DN20 |
| Diameter [mm] |
20 mm |
| Kvs values [m³/h] |
28 m3/h |
| Manufacturer’s name |
Danfoss |
| Media temperature [°C] [Max] |
110 °C |
| Media temperature [°C] [Min] |
2 °C |
| Medium alternative |
Drinking water |
| Medium alternative 2 |
Glycolic water up to 50% |
| Mounting version |
Free |
| Number of ports |
2 |
| Operating torque [Nm] |
5 N-m |
| Permissible media |
Circulation water |
| Pressure nominal [bar] |
40 bar |
| Product group |
Motorized control valves |
| Spindle position |
None |
| Type |
AMZ 112 |
| Valve ball material |
CW 614 N UNI EN 12164 |
| Valve body material |
CW 617 N UNI EN 12165 |
| Valve stem material |
CW 614 N UNI EN 12164 |
| Application |
Domestic and commercial central heating |
| Application alternative VSP |
Solar energy plants |
| Closing differential pressure (diverting) [bar] [Max] |
6 bar |
| Closing differential pressure (mixing) [bar] [Max] |
6 bar |
| Connection size |
Rp 3/4 |
| Connection types |
Internal thread |
|
AMZ 112 ON/OFF 2-w int th 230V DN20 |
| Diameter [mm] |
20 mm |
| Kvs values [m³/h] |
28 m3/h |
| Manufacturer’s name |
Danfoss |
| Media temperature [°C] [Max] |
110 °C |
| Media temperature [°C] [Min] |
2 °C |
| Medium alternative |
Drinking water |
| Medium alternative 2 |
Glycolic water up to 50% |
| Mounting version |
Free |
| Number of ports |
2 |
| Operating torque [Nm] |
5 N-m |
| Permissible media |
Circulation water |
| Pressure nominal [bar] |
40 bar |
| Product group |
Motorized control valves |
| Spindle position |
None |
| Type |
AMZ 112 |
| Valve ball material |
CW 614 N UNI EN 12164 |
| Valve body material |
CW 617 N UNI EN 12165 |
| Valve stem material |
CW 614 N UNI EN 12164 |
