Description
Product details
| Gross weight | 2.99 kg |
| Net weight | 2.99 kg |
| EAN | 5702421518113 |
| Gross weight | 2.99 kg |
| Net weight | 2.99 kg |
| EAN | 5702421518113 |
| Actuator speed [s/mm] | 4 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Application | HD HVAC and DH |
| Closing force [N] | 1500 N |
| Control signal type | 3-point |
| AMV 56 24V 4s/mm 40mm 1500N | |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Manufacturer’s name | Danfoss |
| Position feedback | no – potentiometer needed |
| Power consumption [W] | 18 W |
| Product group | Electrical actuators |
| Protection class | II |
| Safety function | 0 |
| Speed type | Fast |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 40 mm |
| Supply voltage range [V] AC | 24 V |
| Turn time [s] | 0 s |

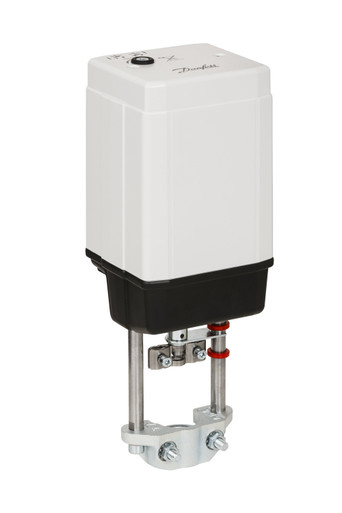

| Type | AMV 56 |
| Actuator speed [s/mm] | 4 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Application | HD HVAC and DH |
| Closing force [N] | 1500 N |
| Control signal type | 3-point |
| AMV 56 24V 4s/mm 40mm 1500N | |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Manufacturer’s name | Danfoss |
| Position feedback | no – potentiometer needed |
| Power consumption [W] | 18 W |
| Product group | Electrical actuators |
| Protection class | II |
| Safety function | 0 |
| Speed type | Fast |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 40 mm |
| Supply voltage range [V] AC | 24 V |
| Turn time [s] | 0 s |
| Type | AMV 56 |
