Description
Product details
| Gross weight |
0.35 kg |
| Net weight |
0.33 kg |
| Gross weight |
0.35 kg |
| Net weight |
0.33 kg |
| EAN |
5702425090462 |
| Approval standard |
EC EN 60730 |
| Cable length [m] |
1.5 m |
| Compatibility with AB-QM size |
DN 10-32 |
| Control input signal Y [mA] |
0(4) – 20 mA |
| Control input signal Y [V] |
0(2) – 10 V |
| Control signal type |
Analog |
|

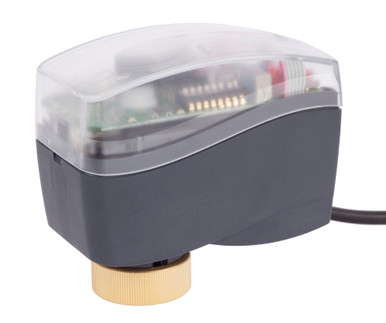

AME 110 NLX, 24 V, 5 mm, actuator with feedback signal for modulating control for AB-QM DN 10-32 |
| IP protection class |
IP 42 |
| Position feedback |
yes |
| Product group |
Gear actuators |
| Product name |
AME 110 NLX 24V 24s/mm 5,5mm 130N |
| Stroke [mm] |
5 mm |
| Supply voltage [V] AC |
24 V |
| Type |
AME 110 NLX 0-10V |
| Approval standard |
EC EN 60730 |
| Cable length [m] |
1.5 m |
| Compatibility with AB-QM size |
DN 10-32 |
| Control input signal Y [mA] |
0(4) – 20 mA |
| Control input signal Y [V] |
0(2) – 10 V |
| Control signal type |
Analog |
|
AME 110 NLX, 24 V, 5 mm, actuator with feedback signal for modulating control for AB-QM DN 10-32 |
| IP protection class |
IP 42 |
| Position feedback |
yes |
| Product group |
Gear actuators |
| Product name |
AME 110 NLX 24V 24s/mm 5,5mm 130N |
| Stroke [mm] |
5 mm |
| Supply voltage [V] AC |
24 V |
| Type |
AME 110 NLX 0-10V |
Product name: AME 110 NLX 24V 24s/mm 5,5mm 130N
Product details
| Gross weight |
0.35 kg |
| Net weight |
0.33 kg |
| Gross weight |
0.35 kg |
| Net weight |
0.33 kg |
| EAN |
5702425090462 |
| Approval standard |
EC EN 60730 |
| Cable length [m] |
1.5 m |
| Compatibility with AB-QM size |
DN 10-32 |
| Control input signal Y [mA] |
0(4) – 20 mA |
| Control input signal Y [V] |
0(2) – 10 V |
| Control signal type |
Analog |
|
AME 110 NLX, 24 V, 5 mm, actuator with feedback signal for modulating control for AB-QM DN 10-32 |
| IP protection class |
IP 42 |
| Position feedback |
yes |
| Product group |
Gear actuators |
| Product name |
AME 110 NLX 24V 24s/mm 5,5mm 130N |
| Stroke [mm] |
5 mm |
| Supply voltage [V] AC |
24 V |
| Type |
AME 110 NLX 0-10V |
| Approval standard |
EC EN 60730 |
| Cable length [m] |
1.5 m |
| Compatibility with AB-QM size |
DN 10-32 |
| Control input signal Y [mA] |
0(4) – 20 mA |
| Control input signal Y [V] |
0(2) – 10 V |
| Control signal type |
Analog |
|
AME 110 NLX, 24 V, 5 mm, actuator with feedback signal for modulating control for AB-QM DN 10-32 |
| IP protection class |
IP 42 |
| Position feedback |
yes |
| Product group |
Gear actuators |
| Product name |
AME 110 NLX 24V 24s/mm 5,5mm 130N |
| Stroke [mm] |
5 mm |
| Supply voltage [V] AC |
24 V |
| Type |
AME 110 NLX 0-10V |
