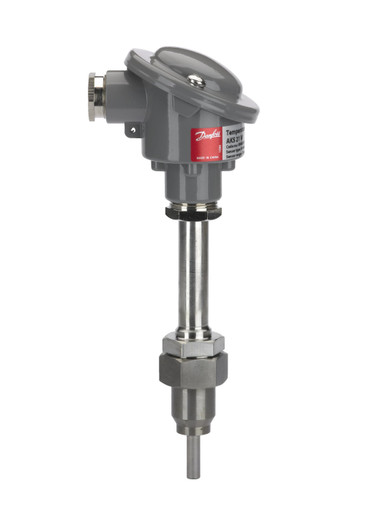

Description
Product details
| Gross weight |
0.43 kg |
| Net weight |
0.42 kg |
| Gross weight |
0.43 kg |
| Net weight |
0.42 kg |
| EAN |
5702422033165 |
| Ambient temperature max. [°C] |
180 °C |
| Ambient temperature max. [°F] |
356 °F |
| Connection type |
Weld |
| Electrical connection |
Type B |
| Electrical connection size |
Pg 16 |
| Measuring range [°C] [Max] |
180 °C |
| Measuring range [°C] [Min] |
-70 °C |
| Measuring range [°F] [Max] |
356 °F |
| Measuring range [°F] [Min] |
-94 °F |
| Number of terminals [pcs] |
3 pc |
| Packing format |
Multi pack |
| Process connection notes |
Weldable |
| Process connection size |
22 |
| Process connection type |
Ø |
| Product family name |
AKS |
| Product group |
Sensors |
| Product name |
Temperature sensor |
| Protection tube diameter [in] |
0.28 in |
| Protection tube diameter [mm] |
7 mm |
| Protection tube length [in] |
1.97 in |
| Protection tube length [mm] |
50 mm |
| Protection tube material |
Stainless steel |
| Quantity per packing format |
12 pc |
| Sensor elem. resistance [Ohm] |
1000 Ohm |
| Sensor element [pc] |
1 pc |
| Sensor element standard |
EN 60751 |
| Sensor element tolerance |
Class B |
| Sensor element type |
Pt |
| Sensor Insert |
Exchangeable |
| Type |
AKS 21 W |
| Wires [pcs] |
2 pc |
| Ambient temperature max. [°C] |
180 °C |
| Ambient temperature max. [°F] |
356 °F |
| Connection type |
Weld |
| Electrical connection |
Type B |
| Electrical connection size |
Pg 16 |
| Measuring range [°C] [Max] |
180 °C |
| Measuring range [°C] [Min] |
-70 °C |
| Measuring range [°F] [Max] |
356 °F |
| Measuring range [°F] [Min] |
-94 °F |
| Number of terminals [pcs] |
3 pc |
| Packing format |
Multi pack |
| Process connection notes |
Weldable |
| Process connection size |
22 |
| Process connection type |
Ø |
| Product family name |
AKS |
| Product group |
Sensors |
| Product name |
Temperature sensor |
| Protection tube diameter [in] |
0.28 in |
| Protection tube diameter [mm] |
7 mm |
| Protection tube length [in] |
1.97 in |
| Protection tube length [mm] |
50 mm |
| Protection tube material |
Stainless steel |
| Quantity per packing format |
12 pc |
| Sensor elem. resistance [Ohm] |
1000 Ohm |
| Sensor element [pc] |
1 pc |
| Sensor element standard |
EN 60751 |
| Sensor element tolerance |
Class B |
| Sensor element type |
Pt |
| Sensor Insert |
Exchangeable |
| Type |
AKS 21 W |
| Wires [pcs] |
2 pc |
Sensor element type: Pt, Sensor elem. resistance [Ohm]: 1000, Electrical connection size: Pg 16, Electrical connection: Type B
