Description
Product details
| Gross weight | 0.46 kg |
| Net weight | 0.46 kg |
| EAN | 5702421715000 |
| Gross weight | 0.46 kg |
| Net weight | 0.46 kg |
| EAN | 5702421715000 |
| Ambient temperature [°C] [Max] | 80 °C |
| Cable entry | Pg 20 |
| Contact inductive load [A] | 2.5 A |
| Contact ohmic load [A] | 10 A |
| Contact three-phase load [A] | 7 A |
| Contacts | Ag 1000/1000 |
| Cut-out accuracy [K] [Max] | 6 |
| Cut-out accuracy [K] [Min] | 0 |
| Safety thermostat ST-1 | |
| Differential STW [K] | 12 (+/- 3) |
| Differential TR [K] | 4 (+/- 1) |
| Grade of enclosure | IP40 |
| Manufacturer’s name | Danfoss |
| Mounting orientation | No restriction |
| Number of temperature sensors | 2 |
| Permissible media | Circulation water |
| Pressure nominal [bar] | 10 bar |
| Product group | Safety Thermostats |
| Reset temperature difference STW | Auto |
| Reset temperature difference TR | Auto |
| Safety monitor STW setting [°C] [Max] | 120 °C |
| Safety monitor STW setting [°C] [Min] | 100 °C |
| Sensor connection | R ½ |
| Sensor pocket material | Brass Ms 58/copper |
| Sensor temperature [°C] [Max] | 130 °C |
| Storage temperature [°C] [Max] | 80 °C |
| Storage temperature [°C] [Min] | -15 °C |
| Temperature sensor diameter [mm] | 9 mm |
| Temperature sensor length [mm] | 100 mm |
| Thermostat TR setting [°C] [Max] | 120 °C |
| Thermostat TR setting [°C] [Min] | 30 °C |
| Transport temperature [°C] [Max] | 80 °C |
| Transport temperature [°C] [Min] | -15 °C |
| Type | ST-1 |
| Ambient temperature [°C] [Max] | 80 °C |
| Cable entry | Pg 20 |
| Contact inductive load [A] | 2.5 A |
| Contact ohmic load [A] | 10 A |
| Contact three-phase load [A] | 7 A |
| Contacts | Ag 1000/1000 |
| Cut-out accuracy [K] [Max] | 6 |
| Cut-out accuracy [K] [Min] | 0 |
| Safety thermostat ST-1 | |
| Differential STW [K] | 12 (+/- 3) |
| Differential TR [K] | 4 (+/- 1) |
| Grade of enclosure | IP40 |
| Manufacturer’s name | Danfoss |
| Mounting orientation | No restriction |
| Number of temperature sensors | 2 |
| Permissible media | Circulation water |
| Pressure nominal [bar] | 10 bar |
| Product group | Safety Thermostats |
| Reset temperature difference STW | Auto |
| Reset temperature difference TR | Auto |
| Safety monitor STW setting [°C] [Max] | 120 °C |
| Safety monitor STW setting [°C] [Min] | 100 °C |
| Sensor connection | R ½ |
| Sensor pocket material | Brass Ms 58/copper |
| Sensor temperature [°C] [Max] | 130 °C |
| Storage temperature [°C] [Max] | 80 °C |
| Storage temperature [°C] [Min] | -15 °C |
| Temperature sensor diameter [mm] | 9 mm |
| Temperature sensor length [mm] | 100 mm |
| Thermostat TR setting [°C] [Max] | 120 °C |
| Thermostat TR setting [°C] [Min] | 30 °C |
| Transport temperature [°C] [Max] | 80 °C |
| Transport temperature [°C] [Min] | -15 °C |
| Type | ST-1 |

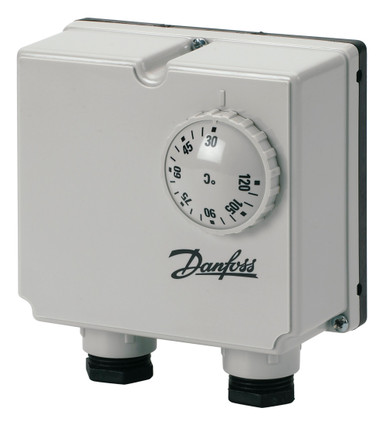

TERMOSTAT ST 1
Product details
| Gross weight | 0.46 kg |
| Net weight | 0.46 kg |
| EAN | 5702421715000 |
| Gross weight | 0.46 kg |
| Net weight | 0.46 kg |
| EAN | 5702421715000 |
| Ambient temperature [°C] [Max] | 80 °C |
| Cable entry | Pg 20 |
| Contact inductive load [A] | 2.5 A |
| Contact ohmic load [A] | 10 A |
| Contact three-phase load [A] | 7 A |
| Contacts | Ag 1000/1000 |
| Cut-out accuracy [K] [Max] | 6 |
| Cut-out accuracy [K] [Min] | 0 |
| Safety thermostat ST-1 | |
| Differential STW [K] | 12 (+/- 3) |
| Differential TR [K] | 4 (+/- 1) |
| Grade of enclosure | IP40 |
| Manufacturer’s name | Danfoss |
| Mounting orientation | No restriction |
| Number of temperature sensors | 2 |
| Permissible media | Circulation water |
| Pressure nominal [bar] | 10 bar |
| Product group | Safety Thermostats |
| Reset temperature difference STW | Auto |
| Reset temperature difference TR | Auto |
| Safety monitor STW setting [°C] [Max] | 120 °C |
| Safety monitor STW setting [°C] [Min] | 100 °C |
| Sensor connection | R ½ |
| Sensor pocket material | Brass Ms 58/copper |
| Sensor temperature [°C] [Max] | 130 °C |
| Storage temperature [°C] [Max] | 80 °C |
| Storage temperature [°C] [Min] | -15 °C |
| Temperature sensor diameter [mm] | 9 mm |
| Temperature sensor length [mm] | 100 mm |
| Thermostat TR setting [°C] [Max] | 120 °C |
| Thermostat TR setting [°C] [Min] | 30 °C |
| Transport temperature [°C] [Max] | 80 °C |
| Transport temperature [°C] [Min] | -15 °C |
| Type | ST-1 |
| Ambient temperature [°C] [Max] | 80 °C |
| Cable entry | Pg 20 |
| Contact inductive load [A] | 2.5 A |
| Contact ohmic load [A] | 10 A |
| Contact three-phase load [A] | 7 A |
| Contacts | Ag 1000/1000 |
| Cut-out accuracy [K] [Max] | 6 |
| Cut-out accuracy [K] [Min] | 0 |
| Safety thermostat ST-1 | |
| Differential STW [K] | 12 (+/- 3) |
| Differential TR [K] | 4 (+/- 1) |
| Grade of enclosure | IP40 |
| Manufacturer’s name | Danfoss |
| Mounting orientation | No restriction |
| Number of temperature sensors | 2 |
| Permissible media | Circulation water |
| Pressure nominal [bar] | 10 bar |
| Product group | Safety Thermostats |
| Reset temperature difference STW | Auto |
| Reset temperature difference TR | Auto |
| Safety monitor STW setting [°C] [Max] | 120 °C |
| Safety monitor STW setting [°C] [Min] | 100 °C |
| Sensor connection | R ½ |
| Sensor pocket material | Brass Ms 58/copper |
| Sensor temperature [°C] [Max] | 130 °C |
| Storage temperature [°C] [Max] | 80 °C |
| Storage temperature [°C] [Min] | -15 °C |
| Temperature sensor diameter [mm] | 9 mm |
| Temperature sensor length [mm] | 100 mm |
| Thermostat TR setting [°C] [Max] | 120 °C |
| Thermostat TR setting [°C] [Min] | 30 °C |
| Transport temperature [°C] [Max] | 80 °C |
| Transport temperature [°C] [Min] | -15 °C |
| Type | ST-1 |
