Description

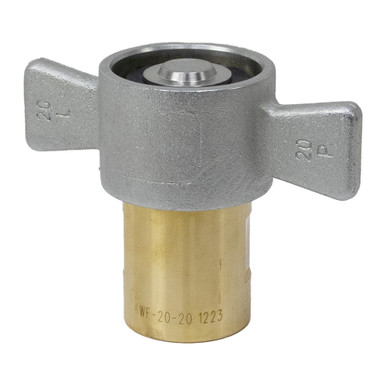

1-1/4″ NPT THREAD-TO-CONNECT COUPLING BODY
Brand new, HORIZON KST series thread-to-connect coupling body only. Heavy duty, thread-to-connect design can be connected under pressure, with little or no spillage. Commonly used on oil-field equipment and for dump trailer wet-line kits.
Solid brass body, zinc-plated steel “wings”, nitrile NBR seals and Teflon backup ring.
Interchangeable half-for-half with the following: PARKER 6100, PERFECTING W, FASTER FB, SAFEWAY S51, SNAPTITE 78, TOMCO A51 and AEROQUIP 5100.
SPECIFICATIONS
- Brand Horizon Industrial
- Model Number WF-20-20
- Body Size 1-1/4″
- Port 1-1/4″ NPT
- Pressure, Working 3000 PSI Max
- Pressure, Burst 9000 PSI
- Flow 58.1 GPM Max
- Temperature Range -25° C to 125° C
- Oil Spillage (at disconnect) 0.2 cc
- Width Across “Wings” 5-5/16″
- Body Length 3-7/8″
- Shpg. 3 lbs.
Tip for body
| 1-1/4″ NPT Brass Wing Nut Quick Coupler Tip Only Horizon WM-20-20 |
904355 |
Dust plug for body
| Dust Plug for 1-1/4″ Wing Nut Coupler Body Horizon W20F |
904749 |
Complete coupler
| 1-1/4″ NPT Brass Wing Nut Quick Coupler |
907087 |
