Description

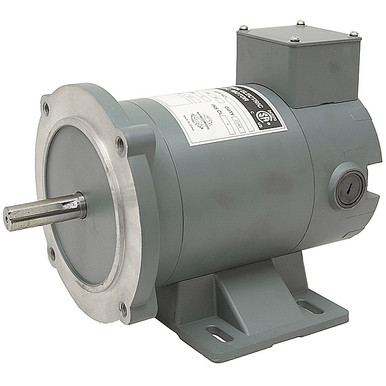

1/3 HP 90 VOLT DC 1800 RPM MOTOR
Brand new, Worldwide Electric model WPMDC13-18-90V-56CB permanent magnet motor. Bolt on/off steel base. Class F insulation. 20:1 speed range at constant torque. Extra set of brushes and springs are included.
SPECIFICATIONS
- Brand Worldwide
- Model Number WPMDC13-18-90V-56CB
- Power 1/3 HP
- Voltage 90 DC
- Amperage 3.5 Amps
- Service Factor 1.0
- Speed 1800 RPM
- Torque 0.97 lb.ft.
- Rotation Reversible
- Bearings Ball
- Enclosure TENV
- Duty Continuous
- Frame 56C
- Mount Face & base
- Shaft 5/8″ x 1-7/8″, 3/16″ keyway
- Size 5.87″x 8.1″ x 7.63″
- Shpg. 20 lbs.
