Description

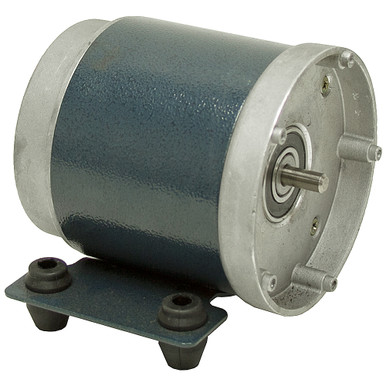

12 VOLT DC MOTOR
New, permanent magnet motor. Built to drive agricultural spray pumps. 5 mounting bosses on front cover for attaching pump. Could also be used as DC generator. Rubber isolators for holes in mounting base.
SPECIFICATIONS
- Power 1/4 HP
- Voltage 12 Volt DC
- Speed/Amps
2600 RPM, 2.2 amps no load
2300 RPM, 25 amps, 7 in.lbs. torque - Rotation Reversible
- Bearings Ball
- Enclosure TENV
- Duty Continuous
- Frame Rigid welded base
- Mount 4-1/8″ x 2-1/2″
- Shaft 5/16″ dia. x 11/16″ w/flat
- Size 4.25″ dia. x 4.5″
- Shpg. 8 lbs.
