Description

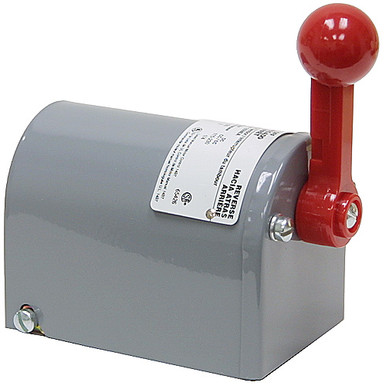

REVERSING DRUM SWITCH SINGLE OR 3 PHASE
Brand new, drum type reversing switch. Double-pole, double-throw, spring returned to center off position. Heavy duty copper contacts, painted metal housing. Use with single or 3 phase circuits. UL and CSA listed.
SPECIFICATIONS
- Brand Relay & Control Corp.
- Model RS-1M
- Contact style DPDT-CO
- Contact Ratings
- Single Phase
1.5 HP @ 115 VAC
2 HP @ 230 VAC - 3 Phase
2 HP @ 230 VAC
1 HP @ 460 VAC - Lever motion 3 position,momentary
- Mount 2 bolts on base,1-5/8″ c/c
- Size 2-1/4″ x 4″ x 4-1/2″
- Shpg. 2 lbs.
