Description

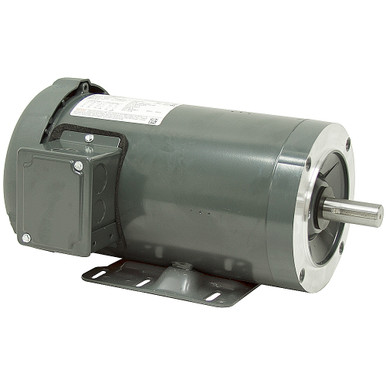

1-1/2 HP 1800 RPM 230/460 VOLT AC 3 PHASE 145TC PREMIUM EFFICIENCY FACE & BASE MOUNT MOTOR
New, LINCOLN model SSF2B2TC61 premium efficiency three phase, electric motor. Inverter-rated, speed range 10:1. Steel frame. No thermal overload protection.
SPECIFICATIONS
- Brand Lincoln
- Model Number SSF2B2TC61
- Catalog Number LM32825
- Power 1-1/2 HP
- Voltage 208-230/460 AC
- Amperage 4.7-4.6/2.3 Amps
- Speed 1800 RPM
- Rotation Reversible
- Phase 3
- Service Factor 1.15
- Bearings Ball
- Enclosure TEFC
- Duty Continuous
- Frame 145TC
- Face Mount Four 3/8″-16 tapped holes on 5-7/8″ dia. bolt circle
- Rigid Base Mount Six 0.34″ dia. holes on 4-7/8″ x 4″ to 5″ centers
- Shaft 7/8″ dia. x 2-1/8″ w/ 3/16″ keyway
- Size 12.25″ x 9.24″ x 7.34″
- Shpg. 46 lbs.
