Description

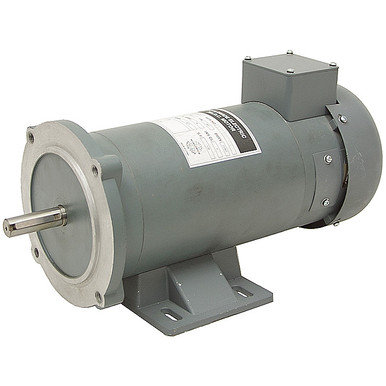

1 HP 12 VOLT DC 1800 RPM MOTOR
Brand new, Worldwide Electric model WPMDC1-18-12V-56CB permanent magnet motor. Bolt on/off steel base. Class F insulation. 20:1 speed range at constant torque.
SPECIFICATIONS
- Brand Worldwide
- Model Number WPMDC1-18-12V-56CB
- Power 1 HP
- Voltage 12 DC
- Amperage 82.2 Amps
- Service Factor 1.0
- Speed 1800 RPM
- Torque 2.92 lb.ft.
- Rotation Reversible
- Bearings Ball
- Enclosure TEFC
- Duty Continuous
- Frame 56C
- Mount Face & base
- Shaft 5/8″ x 1-7/8″, 3/16″ keyway
- Size 5.87″x 12.2″ x 7.63″
- Shpg. 29.8 lbs.
