Description

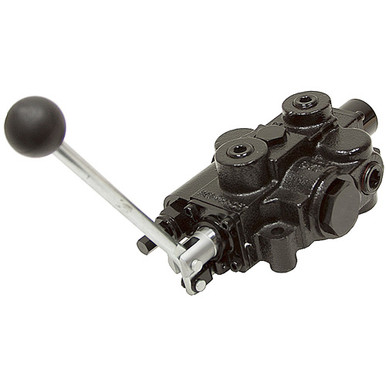

1 SPOOL 30 GPM PRINCE RD512CA5A4B1 OPEN CENTER VALVE
Brand new PRINCE. Hydraulic control valve for operating double acting cylinders. Monoblock cast iron body. Hard chrome plated spools. Load checks.(click here to see the same valve with ORB ports)
SPECIFICATIONS
- Brand Prince Mfg.
- Model Number RD512CA5A4B1
- Open Center
- Spools One
- Flow 30 GPM max.
- Pressure 3000 PSI max.
- Relief Valve factory set at 2000 PSI Adjustable 1500-3000 PSI
- In/Out Ports 3/4″ NPT
- Work Ports 1/2″ NPT
- Mount 3 holes thru body
- Size 9.5″ x 5″ x 3.25″
- Shpg. 16 lbs.
Spool Details:
Spool 1 Double acting spring centered
Handle Kit
| Handle Kit For RD5000 Series Valve Prince Mfg. 660150004 |
900960 |
Detent Kit
| 3-Position Manual Detent Kit for RD5000 Series Valve Prince Mfg 660150002 |
900783 |
Power Beyond Sleeves
| 3/4″ NPT Power Beyond Sleeve Prince Mfg. 660312004 |
900569 |
| SAE 12 Power Beyond Sleeve Prince Mfg. 660312008 |
902425 |
Closed Center Plug
| Closed Center Plug Prince Mfg. RD5000 Valves 660312005 |
900833 |
