Description

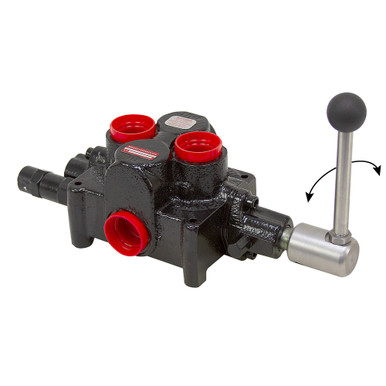

MARINE PAINTED ROTARY CONTROL VALVE
Brand new, BRAND HYDRAULICS model MDC16TM404HB directional control valve with rotary spool. Special Amerlock epoxy coating to inhibit rust. Stainless steel heat-treated spool. Directional flow control valve combines the features of a four-way directional control valve, load-checks, a full range pressure compensated by-pass type flow control valve, and a pilot operated pressure relief valve all in one compact package. Tandem metering spool with work ports blocked in neutral. The manual rotary handle provides fine metering to either port.
SPECIFICATIONS
- Manufacturer Brand Hydraulics
- Model Number MDC16TM404HB
- Open Center
- Spools One
- Flow 40 GPM max.
- Pressure 3000 PSI max.
- Relief Valve Adj to 1500-3000, preset @ 1500 PSI
- In/Out Ports SAE 16
- Work Ports SAE 16
- Mount 3 holes thru body
- Size 12.875″ x 5″ x 4.125″
- Shpg. 22 lbs.
Spool Details:
Spool 1 Double Acting, rotary motion, Heat-Treated Stainless Steel
