Description

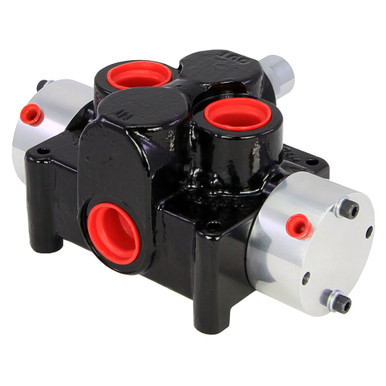

SINGLE SPOOL 45 GPM BRAND OC PILOT OPERATED CONTROL VALVE
Brand new, BRAND HYDRAULICS model DC16T4P2SB-25 high flow directional control valve. Cast iron body with Buna-N O-rings. High lift, ball spring relief valve.
SPECIFICATIONS
- Manufacturer BRAND
- Model Number DC16T4P2SB-25
- Open Center Pilot Operated Spring Centering
- Spools One
- Flow 45 GPM max.
- Pressure 3,000 PSI max.
- Relief Valve Adj. set at 2,500 PSI
- Pilot Pressure 150 PSI Full Shift, 500 PSI max.
- Reqd. Filtration 20 micron
- Pilot Ports 1/4″ NPT
- In/Out Ports SAE 16
- Work Ports SAE 16
- Mount 4 bolts on
4-3/4″ x 3-3/8″ centers - Size 10-5/16″ x 5-1/32″ x 4-1/4″
- Shpg. 18 lbs.
Spool Details:
Spool 1 Double acting cylinder spool, spring-to-center, 3-position
