Description
RIGHT ANGLE GEARBOX

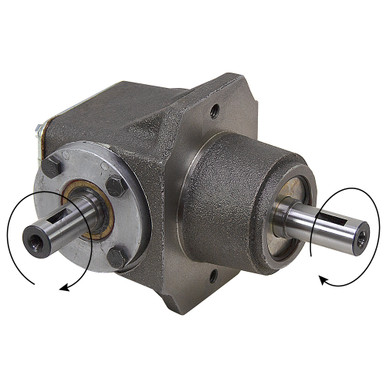

Brand new. PEERLESS 1050-012 gearbox. Cast iron gearbox housing. Ships filled with oil. Shaft rotate in same direction when viewed from end.
SPECIFICATIONS
- Brand Peerless
- Model 1015-012
- Ratio 1.2:1
- Rotation Same
- Input Power 10 HP max continuous
- Input Speed 3600 RPM max.
- Output Torque 360 in-lbs
- Input Shaft 3/4″ dia. x 1-5/8″ w/ 3/16″ woodruff keyway
- Output Shaft 3/4″ dia. x 1-5/8″ w/ 5/32″ woodruff keyway
- Mount Two 3/8-16″ bolt holes on 4″ centers and 2.9″ dia. pilot
- Size 7″ x 5.75″ x 4.75″
- Shpg. 13 lbs.
