Description

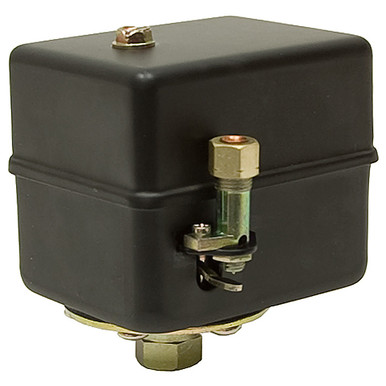

AUTOMATIC PRESSURE SWITCH
Brand new, LEFOO LF17-L1 automatic pressure switch for compressed air systems. Automatically turns electric motor ON or OFF at set values. Adjustable differential. Unloader port 1/4″ OD copper tubing which allows compressor to start without back pressure load. Sturdy metal housing. Single port.
SPECIFICATIONS
- Brand Lefoo
- Model Number LF17-L1
- Contact Rating
2 HP, 24 amps @ 120 Volt AC
3 HP, 20amps @ 240 Volt AC - Factory Setting
ON (Cut-In) 105 PSI
OFF (Cut-Out) 135 PSI - Minimum ON (Cut-in) 40 PSI
- Maximum OFF (Cut-Out) 200 PSI
- Differential 25-60 PSI
- Port 1/4″ NPT
- Size 3.75″ x 3.5″ x 4.25″
- Shpg. 2.8 lbs.
