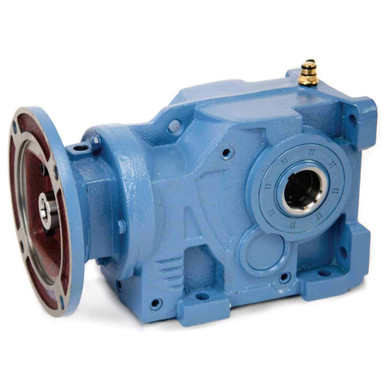

108.03:1 Size 67 2.06 HP Helical Bevel Gear Reducer WWE KHN67-110/1-H-56C
Brand new, World Wide Electric helical bevel gear reducer.Cast iron housing.Gearbox flanges are designed to accept NEMA C-Face electric motors.Foot mounts for horizontal or vertical mounting, hollow output bore.Ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation.Pre-filled with HD320 mineral oil.Single shaft and double shaft output kits available (sold separately).
SPECIFICATIONS
- Manufacturer World Wide Electric
- Model Number KHN67-110/1-H-56C
- Box Size 67
- Gear Stages 3
- Nominal Ratio 110:1
- Actual Ratio 108.03:1
- Output RPM @ 1750 RPM Input 16 RPM
- Input HP 2.06 HP max.
- Output Torque 7260 in.-lbs. max.
- Over-Hung Load 2140 lbs. max.
- Motor Mount 56C
- Output Bore 1-1/2″ Hollow Keyed, 3/8″ Keyway
- Horizontal Foot Mount Four 0.53″ holes on 5.51″ x 4.72″ centers
- Vertical Foot Mount Four 0.53″ holes on 5.51″ x 6.3″ centers
- Cross Reference SEW K67
- Size 12.42″ x 7.09″ x 8.98″
- Shpg. 71 lbs.
