Description

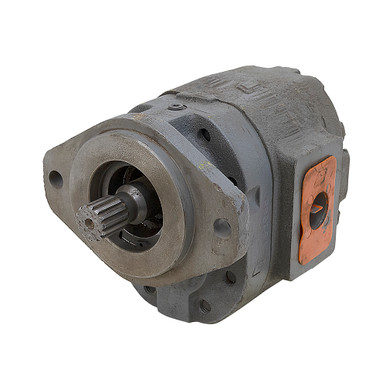

12.3 cu in COMMERCIAL INTERTECH M75A998BEOR30-7 HYDRAULIC MOTOR
Old unused inventory, Commercial Intertech M75A998BEOR30-7 hydraulic motor w/o O.B. bearing.
SPECIFICATIONS
- Brand Commercial Intertech
- Model M75A998BEOR30-7
- Part Number M5290568
- Catalog Number 316-9219-204
- Family M75
- Displacement 12.3 cu. in. / rev.
- Motor Type Gear
- Rotation Reversible
- Pressure: 2000 PSI max.
- Torque:
3625 in-lbs. @ 800 RPM
3425 in-lbs. @ 2000 RPM - Speed:
800 RPM min.
2000 RPM max. - Flow:
50.5 GPM @ 800 RPM
114 GPM @ 2000 RPM - Mount SAE C 2 Bolt
- Shaft 7/32″ 14T spline x 1-3/4″ long
- Ports 1-1/2″ 4 bolt flange, code 61
- Case Drain 1/4″ NPT
- Size 11.75″ x 8.5″ x 8.25″
- Shpg. 136 lbs.
