Description

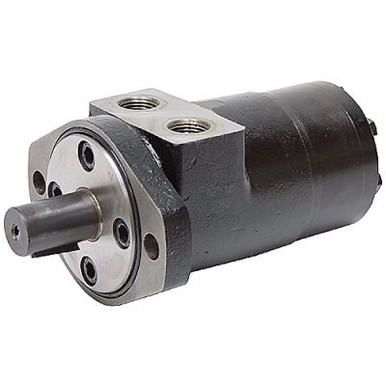

14.66 cu in DYNAMIC BMPH250H2KP HYDRAULIC MOTOR
Brand new. DYNAMIC BMPH series hydraulic motors. Gerotor power element. Interchangeable with the following motor lines: CHAR-LYNN H, DANFOSS DH, WHITE RS, PARKER – ROSS MG/TB.
SPECIFICATIONS
- Brand Dynamic
- Model 61016
- Build Number BMPH-250-H2-K-P
- Family BMPH
- Displacement 14.66 cu. in. / rev.
- Motor Type Gerotor
- Rotation Reversible
- Pressure:
2031 PSI cont.
2538 PSI int. - Torque:
4071 in-lbs cont.
5045 in-lbs. int. - Speed:
250 RPM cont.
310 RPM int. - Flow:
15.9 GPM cont.
19.8 GPM int. - Mount 2 bolt SAE A
- Shaft 1″ dia. x 1.57″ long w/ 1/4″ key, tapped 1/4″-20
- Ports 1/2″ NPT
- Case Drain SAE 4
- Size 6.5625″ x 5.18″ x 3.25″
- Shpg. 19 lbs.
