Sale!

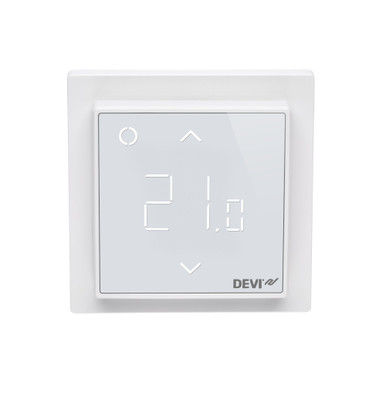

140F1140 Danfoss DEVIreg™ Smart

140F1140 Danfoss DEVIreg™ Smart

Original price was: $331.59.Current price is: $66.32.

SKU: 140F1140 Category: Tag:

Description

Product details

Gross weight 0.26 kg
Net weight 0.26 kg
EAN 5703466239629
Gross weight 0.26 kg
Net weight 0.26 kg
EAN 5703466239629



Ambient temperature [°C] [Max] 30 °C
Ambient temperature [°C] [Min] 0 °C
Ball presure test temperature [°C] 75 °C
Certification company CE
EAC
Intertek Semko
Colour White RAL 9016
Depth [mm] 44 mm
DEVIreg Smart polar white
DIN mounting No
Element IP Class 21
Frost protection [°C] 5 °C
Height [mm] 85 mm
Hysteresis (+/-) 0.2
Inductive load cos φ= 0.3 max 1A
Package depth [mm] 110 mm
Package height [mm] 84 mm
Package width [mm] 108 mm
Pollution degree 2
Product group Thermostats
Product name DEVIreg™ Smart polar white
Regulation type Hysteresis
Relay switch 1-pole
Resistive load max [A] 16
Sensor definition point [Ohm/°C] 15kΩ / 25°C
Sensor type Room + Floor
Software class A
Standby power consumption [W] [Max] 0.4 W
Storage temperature [°C] [Max] 65 °C
Storage temperature [°C] [Min] -20 °C
Supply voltage range [V] AC 230 V
Supply voltage range [V] AC [Max] 240 V
Supply voltage range [V] AC [Min] 220 V
Temperature – floor [°C] [Max] 45 °C
Temperature – floor [°C] [Min] 5 °C
Temperature – room [°C] [Max] 35 °C
Temperature – room [°C] [Min] 5 °C
Temperature limiter [°C] [Max] 45 °C
Temperature limiter [°C] [Min] 5 °C
Temperature max. limiter [°C] [Max] 35 °C
Temperature max. limiter [°C] [Min] 20 °C
Temperature min. limiter [°C] [Max] 35 °C
Temperature min. limiter [°C] [Min] 10 °C
Terminal cable size max [mm²] 2 x 2.5
Type DEVIreg™ Smart
Warranty [Year] 5
Width [mm] 85 mm
Ambient temperature [°C] [Max] 30 °C
Ambient temperature [°C] [Min] 0 °C
Ball presure test temperature [°C] 75 °C
Certification company CE
EAC
Intertek Semko
Colour White RAL 9016
Depth [mm] 44 mm
DEVIreg Smart polar white
DIN mounting No
Element IP Class 21
Frost protection [°C] 5 °C
Height [mm] 85 mm
Hysteresis (+/-) 0.2
Inductive load cos φ= 0.3 max 1A
Package depth [mm] 110 mm
Package height [mm] 84 mm
Package width [mm] 108 mm
Pollution degree 2
Product group Thermostats
Product name DEVIreg™ Smart polar white
Regulation type Hysteresis
Relay switch 1-pole
Resistive load max [A] 16
Sensor definition point [Ohm/°C] 15kΩ / 25°C
Sensor type Room + Floor
Software class A
Standby power consumption [W] [Max] 0.4 W
Storage temperature [°C] [Max] 65 °C
Storage temperature [°C] [Min] -20 °C
Supply voltage range [V] AC 230 V
Supply voltage range [V] AC [Max] 240 V
Supply voltage range [V] AC [Min] 220 V
Temperature – floor [°C] [Max] 45 °C
Temperature – floor [°C] [Min] 5 °C
Temperature – room [°C] [Max] 35 °C
Temperature – room [°C] [Min] 5 °C
Temperature limiter [°C] [Max] 45 °C
Temperature limiter [°C] [Min] 5 °C
Temperature max. limiter [°C] [Max] 35 °C
Temperature max. limiter [°C] [Min] 20 °C
Temperature min. limiter [°C] [Max] 35 °C
Temperature min. limiter [°C] [Min] 10 °C
Terminal cable size max [mm²] 2 x 2.5
Type DEVIreg™ Smart
Warranty [Year] 5
Width [mm] 85 mm

DEVIreg Smart polar white

Product details

Gross weight 0.26 kg
Net weight 0.26 kg
EAN 5703466239629
Gross weight 0.26 kg
Net weight 0.26 kg
EAN 5703466239629



Ambient temperature [°C] [Max] 30 °C
Ambient temperature [°C] [Min] 0 °C
Ball presure test temperature [°C] 75 °C
Certification company CE
EAC
Intertek Semko
Colour White RAL 9016
Depth [mm] 44 mm
DEVIreg Smart polar white
DIN mounting No
Element IP Class 21
Frost protection [°C] 5 °C
Height [mm] 85 mm
Hysteresis (+/-) 0.2
Inductive load cos φ= 0.3 max 1A
Package depth [mm] 110 mm
Package height [mm] 84 mm
Package width [mm] 108 mm
Pollution degree 2
Product group Thermostats
Product name DEVIreg™ Smart polar white
Regulation type Hysteresis
Relay switch 1-pole
Resistive load max [A] 16
Sensor definition point [Ohm/°C] 15kΩ / 25°C
Sensor type Room + Floor
Software class A
Standby power consumption [W] [Max] 0.4 W
Storage temperature [°C] [Max] 65 °C
Storage temperature [°C] [Min] -20 °C
Supply voltage range [V] AC 230 V
Supply voltage range [V] AC [Max] 240 V
Supply voltage range [V] AC [Min] 220 V
Temperature – floor [°C] [Max] 45 °C
Temperature – floor [°C] [Min] 5 °C
Temperature – room [°C] [Max] 35 °C
Temperature – room [°C] [Min] 5 °C
Temperature limiter [°C] [Max] 45 °C
Temperature limiter [°C] [Min] 5 °C
Temperature max. limiter [°C] [Max] 35 °C
Temperature max. limiter [°C] [Min] 20 °C
Temperature min. limiter [°C] [Max] 35 °C
Temperature min. limiter [°C] [Min] 10 °C
Terminal cable size max [mm²] 2 x 2.5
Type DEVIreg™ Smart
Warranty [Year] 5
Width [mm] 85 mm
Ambient temperature [°C] [Max] 30 °C
Ambient temperature [°C] [Min] 0 °C
Ball presure test temperature [°C] 75 °C
Certification company CE
EAC
Intertek Semko
Colour White RAL 9016
Depth [mm] 44 mm
DEVIreg Smart polar white
DIN mounting No
Element IP Class 21
Frost protection [°C] 5 °C
Height [mm] 85 mm
Hysteresis (+/-) 0.2
Inductive load cos φ= 0.3 max 1A
Package depth [mm] 110 mm
Package height [mm] 84 mm
Package width [mm] 108 mm
Pollution degree 2
Product group Thermostats
Product name DEVIreg™ Smart polar white
Regulation type Hysteresis
Relay switch 1-pole
Resistive load max [A] 16
Sensor definition point [Ohm/°C] 15kΩ / 25°C
Sensor type Room + Floor
Software class A
Standby power consumption [W] [Max] 0.4 W
Storage temperature [°C] [Max] 65 °C
Storage temperature [°C] [Min] -20 °C
Supply voltage range [V] AC 230 V
Supply voltage range [V] AC [Max] 240 V
Supply voltage range [V] AC [Min] 220 V
Temperature – floor [°C] [Max] 45 °C
Temperature – floor [°C] [Min] 5 °C
Temperature – room [°C] [Max] 35 °C
Temperature – room [°C] [Min] 5 °C
Temperature limiter [°C] [Max] 45 °C
Temperature limiter [°C] [Min] 5 °C
Temperature max. limiter [°C] [Max] 35 °C
Temperature max. limiter [°C] [Min] 20 °C
Temperature min. limiter [°C] [Max] 35 °C
Temperature min. limiter [°C] [Min] 10 °C
Terminal cable size max [mm²] 2 x 2.5
Type DEVIreg™ Smart
Warranty [Year] 5
Width [mm] 85 mm
