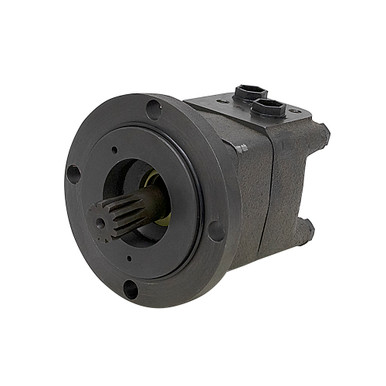

15.5 cu inHydraulic Bearingless Motor Von Ruden MLHSS2504A

Description

15.3 cu in VON RUDEN MLHSS2504A HYDRAULIC MOTOR
Old unused inventory, Von Ruden Mfg. MLHS series bearingless hydraulic motor. Bearingless motor drives must utilize a bearing supported internal spline to mate to motor drive shaft.

SPECIFICATIONS

• Brand Von Ruden
• Model MLHS-S-250-4-A
• Family MLHS
• Displacement 15.3 cu. in. / rev.
• Motor Type Gerotor
• Rotation Reversible
• Pressure:
     3050 PSI cont.
     3625 PSI int.
• Torque:
     3985 in-lbs. cont.
     4780 in-lbs. int.
• Speed:
     303 RPM cont.
     363 RPM int.
• Flow:
     20 GPM cont.
     24 GPM int.
• Mount Four-bolt flange, 1/2″ dia. holes on 5″ B.C., 4″ O.D. pilot
• Shaft 1″ x 2-3/8″ long 12T spline
• Ports SAE 10 offset side ports
• Case Drain SAE 4
• Size 7.75″ x 5.75″ x 5.75″
• Shpg. 25 lbs.
