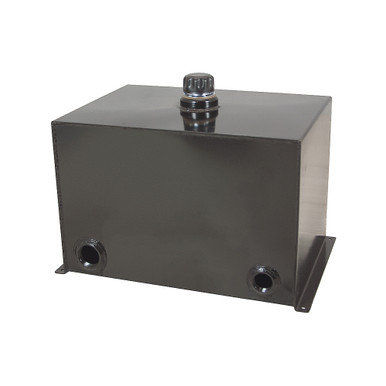

15 GALLON HYDRAULIC RESERVOIR
Brand new, superior quality hydraulic reservoir. Constructed of 12 gauge, black powder-coated steel. Internal baffle slows oil to allow proper cooling. Filler/breather has 10 micron foam filter, mesh basket. Integral mounting foot on each end. Drain port sealed with removable steel plug. Select a reservoir with capacity at least equal to pump flow GPM (e.g. 15 gallon reservoir capacity minimum for system with 15 GPM pump). Made in USA.
SPECIFICATIONS
- Oil Capacity 15 gallons
- Ports:
2″ NPT x one
1-1/2″ NPT x one
3/4″ NPT x one - Mount 4 bolts 24-3/8″ x 13-1/2″ C/C
- Mounting Holes 3/8″ dia.
- Tank Size W/O Feet Or Filler
23-1/4″ x 15″ x 12-5/8″ - Tank Height To Filler Cap Top 15-5/8″
- Foot-Print 25-3/4″ x 15″
- Shpg. 59 lbs.
