Description
This disc hiller can be used in a series of two attached to a tool bar or Keulavator to create raised garden beds or cover a crop such as potatoes. Adjust the width of the hilling discs for your specific requirements.

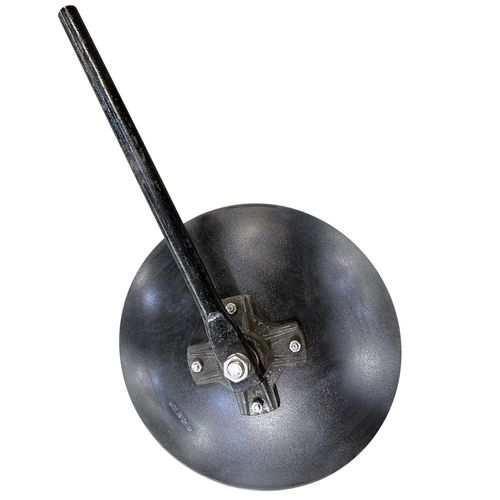

The 16 inch disc constructed of steel is equipped with a Blanton style hub and has a four bolt mounting pattern with a 5 inch on center spacing. Each Blanton hub is assembled with two bearings to help resist wear and tear while building your garden beds. The sturdy 22 inch shank on the disc hiller is also constructed of steel and is 1-3/16 inches in diameter.
Specifications
- 16 in. blade with 22 in. shank
- Shank diameter: 1-3/16 in.
- Blanton style hub with 4 bolts
- Hub hole spacing: 5 in. center
- Replacement shank, ASC 30336
- Replacement hub, ASC 11679
- Replacement bearings use 17849 (requires 2)
- Replacement center bolt, ASC 29842
- Replacement snap ring, ASC 27936
- Use ASC 13275 bolt around outside (takes 4)
- Use with a Keulavator ASC 51946
- If mounting on a 1-3/8″ tool bar use clamp 109931 and wedge bolt 85136
| Product Number |
Ref | Description | Qty Required |
|---|---|---|---|
| 87728 | 1 | 12″ Blade 3 MM | 1 |
| 25900 | 1 | 14″ Blade 3 MM | 1 |
| 25901 | 1 | 16″ Blade 3 MM | 1 |
| 11679 | 2 | Hub – No Bearings | 1 |
| 11678 | 3 | 16″ Shank (1-3/16″ rd) | 1 |
| 30336 | 3 | 22″ Shank (1-3/16″ rd) | 1 |
| 17849 | 4 | 204-BBAR | 2 |
| 27936 | 5 | Snap Ring | 2 |
| 13275 | 6 | 5/16″ Carriage Bolt | 4 |
| 13104 | 7 | 5/16″ Hex Nut | 1 |
| 13094 | 8 | 5/16″ Lock Washer | 4 |
| 29842 | 9 | 3/4″ x 3-1/2″ Thin Head Bolt | 1 |
| 13099 | 10 | 3/4″ Lock Washer | 1 |
| 13109 | 11 | 3/4″ Hex Nut | 1 |
| 33955 | 12 | 3/4″ Flat Washer | 1 |
| n/a | Spacer | 1 |
