Description

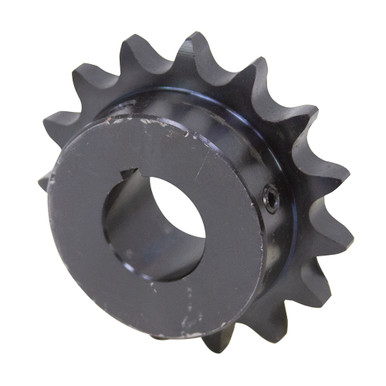

60 PITCH ANSI ROLLER CHAIN SPROCKET
Brand new.ANSI standard 60 pitch roller chain sprocket.Bored to size.One-piece carbon steel forged construction with hardened teeth and black oxide finish.Two set screws.Set screws are located directly over the keyway and 90° from keyway.Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch 60
- Number of Teeth 16
- Bore Size 1-15/16″
- Model Number 60BS16H-1-15/16
- Outside Diameter 4.22″
- Hub Diameter 3-1/16″
- Hub Type B (Hub on one side)
- Length Through Bore 1-1/4″
- Keyway Size 1/2″ wide x 1/4″ depth
- Shpg. 3 lbs.
