Description

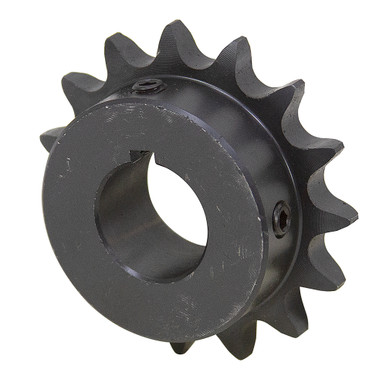

50 PITCH ANSI ROLLER CHAIN SPROCKET
Brand new.ANSI standard 50 pitch roller chain sprocket.Bored to size.One-piece carbon steel forged construction with hardened teeth and black oxide finish.Two set screws.Set screws are located directly over the keyway and 90° from keyway.Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch 50
- Number of Teeth 16
- Bore Size 3/4″
- Model Number 50BS16H-3/4
- Outside Diameter 3.52″
- Hub Diameter 2-1/2″
- Hub Type B (Hub on one side)
- Length Through Bore 1″
- Keyway Size 3/16″ wide x 3/32″ depth
- Shpg. 1.45 lbs.
