Description

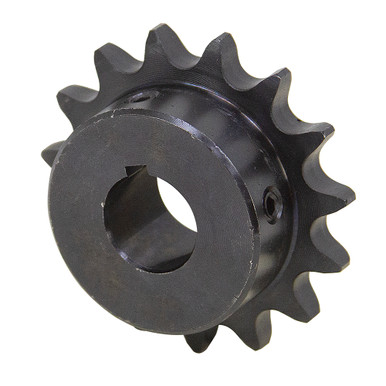

40 PITCH ANSI ROLLER CHAIN SPROCKET
New.ANSI standard 40 pitch roller chain sprocket.Bored to size.One-piece carbon steel forged construction with hardened teeth and black oxide finish.Two set screws.Set screws are located directly over the keyway and 90° from keyway.Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch 40
- Number of Teeth 17
- Bore Size 1-3/16″
- Model Number 40BS17H-1-3/16
- Outside Diameter 2.98″
- Hub Diameter 2-1/8″
- Hub Type B (Hub on one side)
- Length Through Bore 1″
- Keyway Size 1/4″ wide x 1/8″ depth
- Shpg. 0.88 lbs.
