Description
180-1 Connector Link for Precision Roller Chain
Premium ANSI standard connector link (also called a master link) for 180-1 precision roller chain. Essential for joining chain ends and enabling quick assembly and disassembly in agricultural equipment, conveyors, and industrial machinery.
Key Features:
- ANSI standard compliant – works with all standard 180 roller chain
- Available with cotter pin or riveted attachment
- Heat-treated components for maximum strength and durability
- Precision manufactured for proper fit and smooth operation
- Enables quick chain assembly and disassembly
- Sold individually
ANSI Specifications:
- Chain Size: 180-1
- Pitch (P): 2.250″
- Roller Width (W): 1.406″
- Pin Diameter: 0.687″
What is a Connector Link?
A connector link (also called a master link or connecting link) is a special removable link used to join the two ends of a roller chain loop. Unlike standard chain links that are permanently assembled, connector links feature a removable side plate secured with either a cotter pin or rivet. This design allows you to connect and disconnect chain without special tools, making installation, maintenance, and repairs much easier.
Attachment Options:
- Cotter Pin (Recommended): Secure attachment for high-load applications, pins must be properly spread after installation
- Riveted: Permanent installation for maximum strength, use when connector link will not need removal
Installation Notes:
- Connector links are slightly weaker than standard links – position away from high-stress areas when possible
- For cotter pin style, ensure pins are properly spread after installation
- Inspect cotter pins regularly and replace if damaged or loose
- Consider using offset link if odd number of chain links is required
Common Applications:
- Agricultural equipment and machinery
- Conveyors and material handling systems
- Industrial drives and transmissions
- Any application requiring periodic chain removal for maintenance
Expert Help from the Midwest
Based in the heart of American agriculture, we bring over 17 years of hands-on experience specializing in agricultural chain systems. Need help selecting the right connector link attachment style or have questions about installation? Call us at or . We’re here to help you find the right solution.

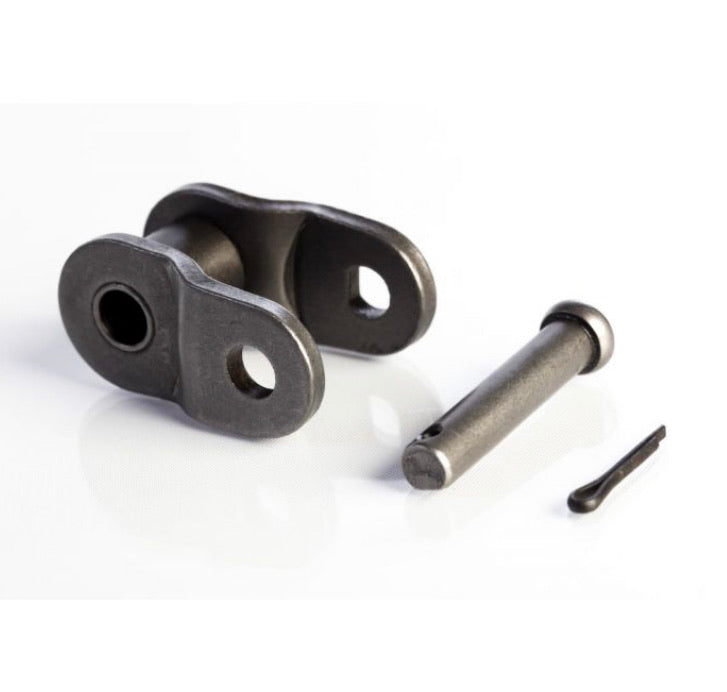

Matching offset links and roller chain also available.
