Description
Product details
| Gross weight |
19.68 kg |
| Net weight |
19.68 kg |
| Ambient temperature [°C] [Max] |
50 °C |
| Ambient temperature [°C] [Min] |
0 °C |
| Ambient temperature [°F] [Max] |
122 °F |
| Ambient temperature [°F] [Min] |
32 °F |
| Body material |
AISI 304 |
| Country of origin |
Denmark |
|

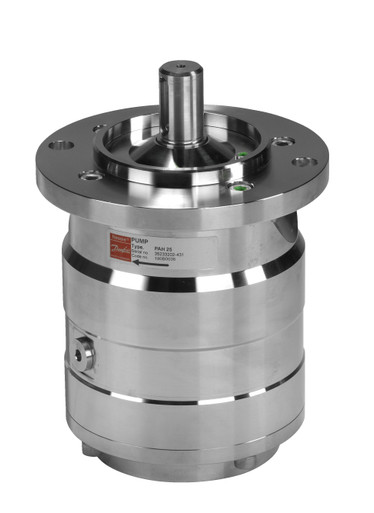

PAH 25 AXIAL PISTON PUMP CCW |
| Direction |
CCW |
| Displacement [cm³/rev] |
25 cm3/rev |
| Displacement [in³/rev] |
1.53 in3/rev |
| Drain connection size [in] |
1/4 in |
| Drain connection standard |
BSPP |
| Drain connection type |
Thread |
| Flow [gpm] [Max] |
11.12 gal/min |
| Flow [gpm] [Min] |
3.89 gal/min |
| Flow [l/min] [Max] |
42.77 L/min |
| Flow [l/min] [Min] |
14.94 L/min |
| Inlet connection size [in] |
1 1/4 in |
| Inlet connection standard |
BSPP |
| Inlet connection type |
Thread |
| Inlet pressure [barg] [Max] |
4 barg |
| Inlet pressure [barg] [Min] |
0 barg |
| Inlet pressure [psig] [Max] |
58 psig |
| Inlet pressure [psig] [Min] |
0 psig |
| Media temperature [°C] [Max] |
50 °C |
| Media temperature [°C] [Min] |
2 °C |
| Media temperature [°F] [Max] |
122 °F |
| Media temperature [°F] [Min] |
36 °F |
| Outlet connection size [in] |
3/4 in |
| Outlet connection standard |
BSPP |
| Outlet connection type |
Thread |
| Outlet pressure [barg] [Max] |
160 barg |
| Outlet pressure [barg] [Min] |
30 barg |
| Outlet pressure [psig] [Max] |
2320 psig |
| Outlet pressure [psig] [Min] |
435 psig |
| Outside dimensions of packaging LxWxH [in] |
11,8×10,6×10 |
| Outside dimensions of packaging LxWxH [mm] |
300x270x255 |
| Product group |
Pump |
| Product name |
PAH pumps |
| Seal Material |
NBR |
| Serviceable |
Yes |
| Sound pressure level [dB(A)] |
79 dBA |
| Speed continuous[rpm] [Min] |
700 rpm |
| Speed [rpm] [Max] |
1800 rpm |
| Speed [rpm] [Min] |
700 rpm |
| Type |
PAH 20-32 |
| Type designation |
PAH 25 CCW |
| Ambient temperature [°C] [Max] |
50 °C |
| Ambient temperature [°C] [Min] |
0 °C |
| Ambient temperature [°F] [Max] |
122 °F |
| Ambient temperature [°F] [Min] |
32 °F |
| Body material |
AISI 304 |
| Country of origin |
Denmark |
|
PAH 25 AXIAL PISTON PUMP CCW |
| Direction |
CCW |
| Displacement [cm³/rev] |
25 cm3/rev |
| Displacement [in³/rev] |
1.53 in3/rev |
| Drain connection size [in] |
1/4 in |
| Drain connection standard |
BSPP |
| Drain connection type |
Thread |
| Flow [gpm] [Max] |
11.12 gal/min |
| Flow [gpm] [Min] |
3.89 gal/min |
| Flow [l/min] [Max] |
42.77 L/min |
| Flow [l/min] [Min] |
14.94 L/min |
| Inlet connection size [in] |
1 1/4 in |
| Inlet connection standard |
BSPP |
| Inlet connection type |
Thread |
| Inlet pressure [barg] [Max] |
4 barg |
| Inlet pressure [barg] [Min] |
0 barg |
| Inlet pressure [psig] [Max] |
58 psig |
| Inlet pressure [psig] [Min] |
0 psig |
| Media temperature [°C] [Max] |
50 °C |
| Media temperature [°C] [Min] |
2 °C |
| Media temperature [°F] [Max] |
122 °F |
| Media temperature [°F] [Min] |
36 °F |
| Outlet connection size [in] |
3/4 in |
| Outlet connection standard |
BSPP |
| Outlet connection type |
Thread |
| Outlet pressure [barg] [Max] |
160 barg |
| Outlet pressure [barg] [Min] |
30 barg |
| Outlet pressure [psig] [Max] |
2320 psig |
| Outlet pressure [psig] [Min] |
435 psig |
| Outside dimensions of packaging LxWxH [in] |
11,8×10,6×10 |
| Outside dimensions of packaging LxWxH [mm] |
300x270x255 |
| Product group |
Pump |
| Product name |
PAH pumps |
| Seal Material |
NBR |
| Serviceable |
Yes |
| Sound pressure level [dB(A)] |
79 dBA |
| Speed continuous[rpm] [Min] |
700 rpm |
| Speed [rpm] [Max] |
1800 rpm |
| Speed [rpm] [Min] |
700 rpm |
| Type |
PAH 20-32 |
| Type designation |
PAH 25 CCW |
Flow [gpm] [Max]: 11.120, Flow [l/min] [Max]: 42.770, Outlet pressure [barg] [Max]: 160, Speed [rpm] [Max]: 1800, Speed [rpm] [Min]: 700, Body material: AISI 304
