Description
Product details
| Gross weight |
1.45 kg |
| Net weight |
0.84 kg |
|

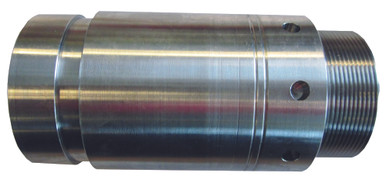

VCM 13 M42 to 1.5 VIC |
| Inlet Connection |
M42 x 1,5 |
| Opening pressure [barg] |
0.4 barg |
| Opening pressure [psig] |
5.8 psig |
| Operating pressure [barg] [Max] |
80 barg |
| Operating pressure [psig] [Max] |
1160 psig |
| Outlet connection |
Victaulic 1.5 in |
| Pressure loss at max. Flow [barg] |
1.2 barg |
| Pressure loss at max. Flow [psig] |
17.4 psig |
| Product group |
Valve |
| Product name |
Check valves |
| Rated flow [gpm] |
47.6 gal/min |
| Rated flow [m³/h] |
13 m3/h |
| Type |
VCM |
| Type designation |
VCM 13 M42 to 1.5 VIC |
|
VCM 13 M42 to 1.5 VIC |
| Inlet Connection |
M42 x 1,5 |
| Opening pressure [barg] |
0.4 barg |
| Opening pressure [psig] |
5.8 psig |
| Operating pressure [barg] [Max] |
80 barg |
| Operating pressure [psig] [Max] |
1160 psig |
| Outlet connection |
Victaulic 1.5 in |
| Pressure loss at max. Flow [barg] |
1.2 barg |
| Pressure loss at max. Flow [psig] |
17.4 psig |
| Product group |
Valve |
| Product name |
Check valves |
| Rated flow [gpm] |
47.6 gal/min |
| Rated flow [m³/h] |
13 m3/h |
| Type |
VCM |
| Type designation |
VCM 13 M42 to 1.5 VIC |
Inlet Connection: M42 x 1,5, Opening pressure [barg]: 0.4, 5.8 psig, Outlet connection: Victaulic 1.5 in, Rated flow [gpm]: 47.6, Rated flow [m³/h]: 13.0
