Description
Product details
| Gross weight |
3.1 kg |
| Net weight |
2.15 kg |
|

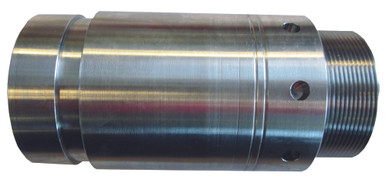

VCM 46 M60 to 2.5 VIC |
| Inlet Connection |
M60 x 1.5 |
| Opening pressure [barg] |
0.2 barg |
| Opening pressure [psig] |
2.9 psig |
| Operating pressure [barg] [Max] |
120 barg |
| Operating pressure [psig] [Max] |
1740 psig |
| Outlet connection |
Victaulic 2.5 in |
| Pressure loss at max. Flow [barg] |
0.55 barg |
| Pressure loss at max. Flow [psig] |
8 psig |
| Product group |
Valve |
| Product name |
Check valves |
| Rated flow [gpm] |
202 gal/min |
| Rated flow [m³/h] |
45 m3/h |
| Type |
VCM |
| Type designation |
VCM 46 M60 to 2.5 VIC |
|
VCM 46 M60 to 2.5 VIC |
| Inlet Connection |
M60 x 1.5 |
| Opening pressure [barg] |
0.2 barg |
| Opening pressure [psig] |
2.9 psig |
| Operating pressure [barg] [Max] |
120 barg |
| Operating pressure [psig] [Max] |
1740 psig |
| Outlet connection |
Victaulic 2.5 in |
| Pressure loss at max. Flow [barg] |
0.55 barg |
| Pressure loss at max. Flow [psig] |
8 psig |
| Product group |
Valve |
| Product name |
Check valves |
| Rated flow [gpm] |
202 gal/min |
| Rated flow [m³/h] |
45 m3/h |
| Type |
VCM |
| Type designation |
VCM 46 M60 to 2.5 VIC |
Inlet Connection: M60 x 1.5, Opening pressure [barg]: 0.2, 2.9 psig, Outlet connection: Victaulic 2.5 in, Rated flow [gpm]: 202.0, Rated flow [m³/h]: 45.0
