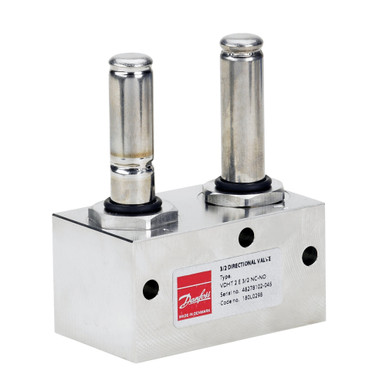

Description
Product details
| Gross weight |
1.57 kg |
| Net weight |
1.54 kg |
| Actuator size [mm] |
13.5 mm |
| Body material |
AISI 304 |
| Closing Time [ms] [Max] |
250 ms |
| Closing Time [ms] [Min] |
250 ms |
| Connection standard |
BSP |
| Connection type |
Thread |
| Direction |
Straightway |
| Drain connection size [in] |
1/4 in |
| Flow [gpm] [Max] |
4 gal/min |
| Flow [gpm] [Min] |
0.3 gal/min |
| Flow [l/min] [Max] |
15 L/min |
| Flow [l/min] [Min] |
1 L/min |
| Function |
NC |
| Inlet connection size [in] |
3/8 in |
| Material type |
Neutral media |
| Media temperature [°C] [Max] |
50 °C |
| Media temperature [°C] [Min] |
2 °C |
| Media temperature [°F] [Max] |
122 °F |
| Media temperature [°F] [Min] |
37 °F |
| Number of ways |
3/2 |
| Opening time [ms] [Max] |
250 ms |
| Opening time [ms] [Min] |
250 ms |
| Operating pressure [barg] [Max] |
140 barg |
| Operating pressure [barg] [Min] |
2 barg |
| Operating pressure [psig] [Max] |
2000 psig |
| Operating pressure [psig] [Min] |
29 psig |
| Operation |
Pilot operated
Direct |
| Outlet connection size [in] |
3/8 in |
| Parts Program name |
VDHT |
| Piston diameter Ø [mm] |
18 mm |
| Product group |
Valve |
| Product name |
Solenoid operated valves |
| Seal Material |
FKM |
| Serviceable |
Yes |
| Type |
VDHT 3/2 |
| Type designation |
VDHT 15 E NC-NC |
| Actuator size [mm] |
13.5 mm |
| Body material |
AISI 304 |
| Closing Time [ms] [Max] |
250 ms |
| Closing Time [ms] [Min] |
250 ms |
| Connection standard |
BSP |
| Connection type |
Thread |
| Direction |
Straightway |
| Drain connection size [in] |
1/4 in |
| Flow [gpm] [Max] |
4 gal/min |
| Flow [gpm] [Min] |
0.3 gal/min |
| Flow [l/min] [Max] |
15 L/min |
| Flow [l/min] [Min] |
1 L/min |
| Function |
NC |
| Inlet connection size [in] |
3/8 in |
| Material type |
Neutral media |
| Media temperature [°C] [Max] |
50 °C |
| Media temperature [°C] [Min] |
2 °C |
| Media temperature [°F] [Max] |
122 °F |
| Media temperature [°F] [Min] |
37 °F |
| Number of ways |
3/2 |
| Opening time [ms] [Max] |
250 ms |
| Opening time [ms] [Min] |
250 ms |
| Operating pressure [barg] [Max] |
140 barg |
| Operating pressure [barg] [Min] |
2 barg |
| Operating pressure [psig] [Max] |
2000 psig |
| Operating pressure [psig] [Min] |
29 psig |
| Operation |
Pilot operated
Direct |
| Outlet connection size [in] |
3/8 in |
| Parts Program name |
VDHT |
| Piston diameter Ø [mm] |
18 mm |
| Product group |
Valve |
| Product name |
Solenoid operated valves |
| Seal Material |
FKM |
| Serviceable |
Yes |
| Type |
VDHT 3/2 |
| Type designation |
VDHT 15 E NC-NC |
Type: VDHT, Connection standard: BSP, Flow [gpm] [Max]: 4.000, Function: NC, Operation: Pilot operated;Direct, Direction: Straightway
