Description

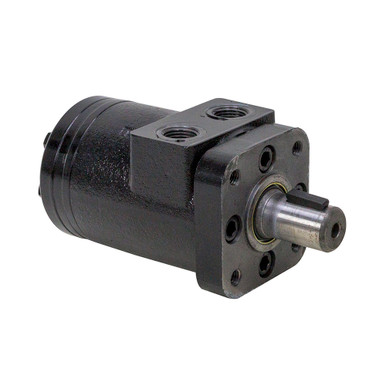

2.2 cu in DYNAMIC BMPH36H4KP HYD MOTOR
Brand new DYNAMIC BMPH series hydraulic motor. Gerotor power element. Interchangeable with the following motor lines: Dynamic BMPH, Danfoss DH, White RS, Parker/Ross MG/TB.
SPECIFICATIONS
- Brand Dynamic
- Model Number 61080
- Build Number BMPH36H4KP
- Disp. 2.2 cu. in. / rev.
- Motor Type Gerotor
- Pressure:
1813 PSI cont.
2393 PSI int. - Torque:
487 in-lbs. cont.
673 in-lbs. int. - Speed:
1500 RPM cont.
1650 RPM int. - Flow:
14.5 GPM cont.
15.8 GPM int. - Rotation Reversible
- Mount 4 bolt 3.25″ bolt circle
- Shaft 1″ dia. x 1.57″ w/1/4″ Woodruff key, tapped 1/4-20
- Ports 1/2″ NPT
- Case Drain SAE 4
- Size 5-1/2″ x 3-1/4″ x 3-1/4″
- Shpg. 15 lbs.
