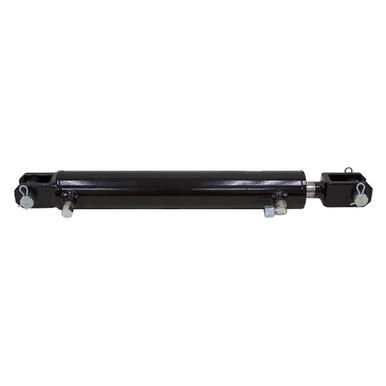

2.5" x 14" x 1.25" Double Acting Hydraulic Cylinder Bailey 322358

2.5″ x 14″ x 1.25″ Double Acting Hydraulic Cylinder Bailey 322358

Original price was: $59.95.Current price is: $17.99.

SKU: 905477 Category:

Description

2.5″ x 14″ x 1.25″ DOUBLE ACTING HYDRAULIC CYLINDER
New, BAILEY model 322358 welded, double acting clevis cylinder with thread-in gland cap, rated for 3000 PSI. Rod end clevis welded to rod, base end clevis welded to base. Include SAE to JIC adapters. Rod end port has 90° JIC 6 male fitting, base end port has straight JIC 6 male fitting. Painted black.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 2.5″ x 14″
  • Barrel Thickness 0.1875″
  • Gland Retainer Thread in cap
  • Pressure 3000 PSI max.
  • Rod Dia. 1.25″
  • Ports SAE 6
  • Retracted Length 24.25″
  • Gland Face to Rod Pin Center 4″
  • Shpg. 27 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 2.13″
  • Inside Width 1.13″
  • Throat Depth 2.03″
  • Pin Hole 1″
  • Base End Clevis
  • Outside Width 2.13″
  • Inside Width 1.13″
  • Throat Depth 1.53″
  • Pin Hole 1″
