Description

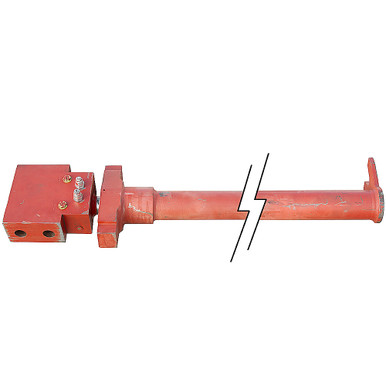

2-3/4″ x 186″ x 2″ DOUBLE ACTING HYDRAULIC TRUNNION CYLINDER
New, double acting hydraulic cylinder with trunnion mount on gland end. Welded construction with internal threaded gland. Trunnion is a rectangle male pin style. Two pin holes and also two SUN counterbalance valves installed on rod end manifold block that are set at 1000 and 1200 PSI.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 2-3/4″ x 186″
- Pressure 2500 PSI max.
- Rod Dia. 2″
|
- Ports SAE 8
- Base to Pin Retracted Length(pin next to gland) 211″
- Trunnion to Crosstube Pin Retracted Length (pin next to gland) 6-1/8″
- Overall Length 215-1/2″
- Actual Weight 290 lbs.
- Shpg. 400 lbs.
|
| END MOUNTINGS |
- Rod End Steel manifold block
- Block Dimensions 8-3/4″x8″x3-1/2″
- Two Pin Holes 1-1/4″
- Pin Centers 3″
- Base End Plain w/bracket
|
- Trunnion End Rectangle male pins
- Outside Pin Width 10-1/2″
- Inside Pin Width 8″
- Pin Size 1-7/8 x 2-1/4″
- Pin Length 1-1/4″
|
