Description

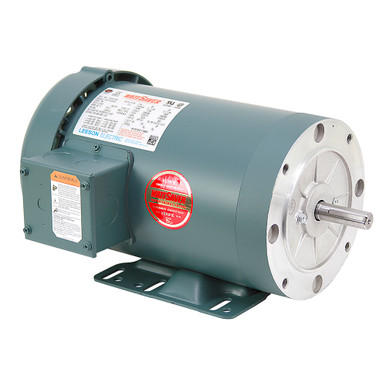

2 HP 1800 RPM 230/460 VOLT AC 3 PHASE 56C MOTOR
Brand new, Leeson model C6T17FK97C three phase, electric motor. Designed to tolerate environments with exposure to water and dust. Ideally suited for many industrial applications. Inverter-rated, speed range 2:1. Steel frame. No thermal overload protection
SPECIFICATIONS
- Brand Leeson
- Model Number C6T17FK97C
- Catalog Number 116747.00
- Power 2 HP
- Voltage 230/460 AC
- Amperage 5.8/2.9 Amps
- Speed 1745 RPM
- Rotation Reversible
- Phase 3
- Service Factor 1.15
- Bearings Ball
- Enclosure TEFC
- Duty Continuous
- Frame 56C
- Face Mount Four 3/8″-16 holes on 5-7/8″ Bolt Circle
- Rigid Base Mount Four 0.34″ dia. holes on 4-7/8″ x 3″ centers
- Shaft 5/8″ dia. x 1-7/8″ w/ 3/16″ keyway
- Size 9.93″ x 8.89″ x 7.32″
- Shpg. 48 lbs.
