Description

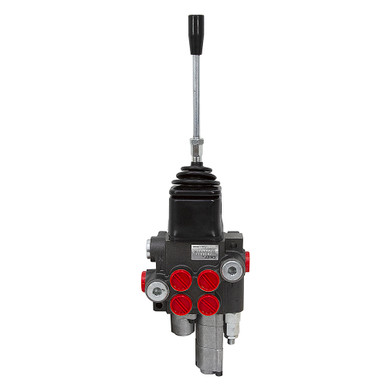

2 SPOOL JOYSTICK LOADER CONTROL VALVE WITH FLOAT
Brand new, CHIEF compact two spool joystick valve with float feature on first spool for operating double acting cylinders. Ideal for use on front end loaders on small to medium sized tractors. The two spools can be operated independently or simultaneously depending on handle movement. Open center. Load checks on each spool. Item Numbers 9-12475-C Closed center conversion plug and 9-12475-PB power beyond conversion plug sold separately.
SPECIFICATIONS
- Model 220957
- Open Center
- Spools Two
- Load Checks Yes
- Flow 10 GPM
- Pressure 3600 PSI
- Relief Valve Set at 2250 PSI, adjustable from 1500 to 3600 PSI
- In/Out Ports SAE 10
- Work Ports SAE 8
- Size 5-1/4″ x 3″ x 18-1/2″
- Shpg. 12 lbs.
Spool Details:
Spool 1 Double acting spring centered with detented float position.
Spool 2 Double acting spring centered.
