Description
21.79:1 SIZE 107 25 HP INLINE GEAR REDUCER
Brand new, World Wide Electric helical inline speed reducer. Cast iron housings. Drop-in replacement for most major inline reducer brands. Gearbox flanges are designed to accept NEMA C-Face electric motors.
SPECIFICATIONS
- Model Number WINL107-20/1-284/6TC
- Box Size 107
- Stages 3
- Nominal Ratio 20:1
- Actual Ratio 21.79:1

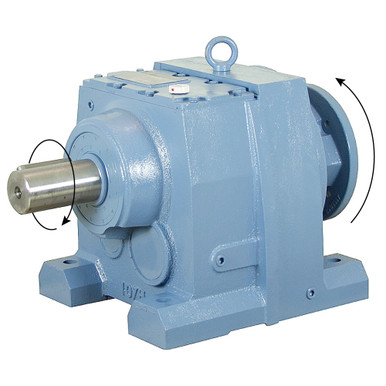

- Input Rotation Reversible, see shaft relation in above photo
- Output RPM @ 1800 RPM Input 86 RPM
- Input Hp 25 Hp Max
- Output Torque 16726 in.-lbs. Max
- Over-Hung Load 3054 lbs. Max
- Service Class II
- Motor Mount 284TC
- Output Shaft 2.875″ dia. x 5.51″ long keyed, 3/4″ wide keyway, shaft end tapped 3/4″-10
- Base Mount Four 1.02″ holes on 17.32″ x 11.42″ centers
- Shpg. 477 lbs.
